AIMS Power 5,000 Watt Modified Sine Inverter, 12VDC to 220/230/240VAC

Shop all AIMS Power
AIMS Power 5,000 Watt Modified Sine Inverter, 12VDC to 220/230/240VAC

Item # 1319396

$609.99
Add a protection plan
What's included
Powersport plans are not available in CA & MD.
AIMS Power 5,000 Watt Modified Sine Inverter, 12VDC to 220/230/240VAC

Item # 1319396

$609.99
Add a protection plan
What's included
Powersport plans are not available in CA & MD.

The AIMS Power 5000W Modified Sine Inverter with 240V AC output is a great choice for an off grid well pump that requires 240VAC to operate. However, keep in mind that this inverter is not a ""split phase"" 240VAC; you will not be able to pull one leg off to create 120VAC. The 240VAC supply is accomplished through one of the two AC receptacles, or the direct connect terminal block. This inverter will accept 12V as an input and produce a modified sine wave output. The AIMS Power inverter offers some great features that are beneficial to any system. First, the front panel has digital gauges that display DC voltage and amp draw. These gauges allow the customer to actively monitor the condition of their system with easy to read gauges. Second, the cooling fans are thermally controlled; which means the fans will only cycle on when the modified sine wave inverter is under heavy loads or the inverter is getting warm internally. Whether for a well pump or a 240V motor that needs back up power, the AIMS Power 5000W 240VAC inverter is a great option. for over a decade, AIMS Power has offered top of the line off grid inverters and accessories for virtually any application.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • 240V single phase AC output

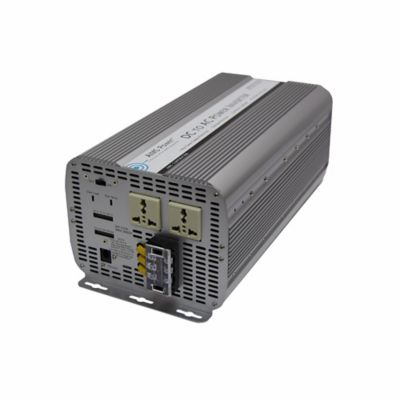

  • Dual AC receptacles
  • 240VAC supply is accomplished through one of the AC receptacles or the direct connect terminal block

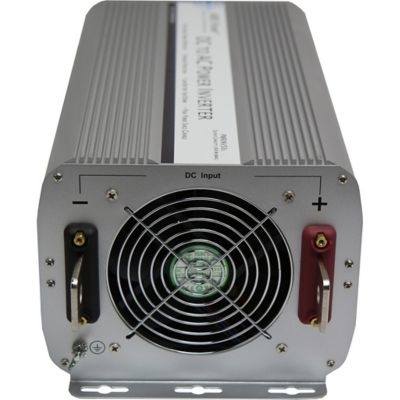

  • AIMS Power inverter will accept 12V as an input and produce a modified sine wave output
  • Front panel of the modified sine wave inverter has digital gauges that display DC voltage and amp draw
  • Cooling fans are thermally controlled so fans will only cycle on when the AIMS power inverter is under heavy loads or is getting warm internally
