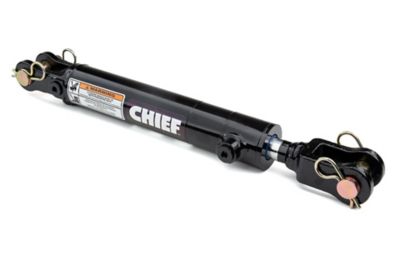

The Chief 2 in. Bore x 6 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the hydraulic cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before the cylinder is ready for sale, it undergoes rigorous testing to ensure maximum reliability and performance.

  • Welded hydraulic cylinder has a rugged ductile iron welded clevis design
  • Standard SAE #8 ports
  • 3,000 PSI seal kits for extended life
  • Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
  • Optional SAE #8 third port location for 90 degree use
  • Hard chrome-plated rod for the most extreme applications
  • Precision-welded piston for an efficient hydraulic cylinder
  • Gloss black paint finish
  • Measures 16.25 in. retracted and 22.25 in. extended
  • Column load: 9,420 lb.
  • 1 year warranty
  • Pin diameter of 1 in. and rod diameter of 1.125 in.

Specification Description
Brand Chief
Country of Origin Imported
Bore Diameter 2 in.
Brand Compatibility Universal
Compatibility Most applications
Extended Length 6 in.
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 12.1 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 1 in.
Port Size SAE 8
Primary Material Steel
Product Height N/A
Product Length N/A
Product Weight 12.1 lb.
Product Width N/A
Retracted Length 16.25 in.
Rod Diameter 1.125 in.
Stroke Distance 6 in.
Warranty 1 Year
Manufacturer Part Number 297069
