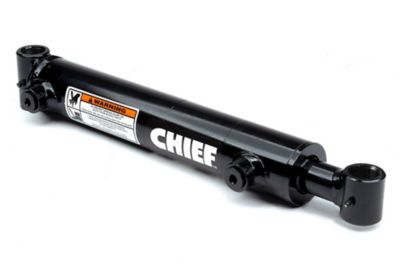

The Chief 3.5 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel

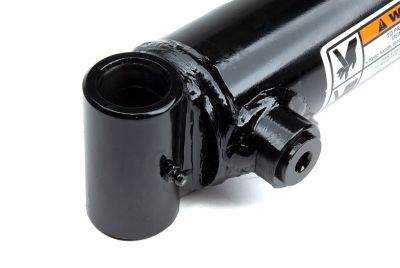

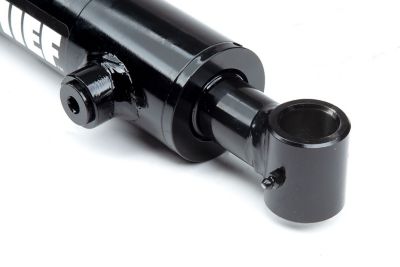

  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Measures 20 in. retracted and 32 in. extended
  • Includes SAE O-ring port hookups on small bores and NPT on large bores
  • Column load: 28,860 lb.
  • Suitable for a variety of applications
  • Made in the USA with a 3 year limited warranty
  • Pin diameter of 1 in. and rod diameter of 2 in.
Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand Chief
Country of Origin Made in USA
Bore Diameter 3.5 in.
Brand Compatibility Universal
Compatibility Tractors
Extended Length 32 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 28,860 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 1 in.
Port Size SAE 8
Primary Material Steel
Product Height N/A
Product Length N/A
Product Weight 38.58 lb.
Product Width 2.5 in.
Retracted Length 20 in.
Rod Diameter 2 in.
Stroke Distance 12 in.
Warranty 3 Year
Manufacturer Part Number 212746
