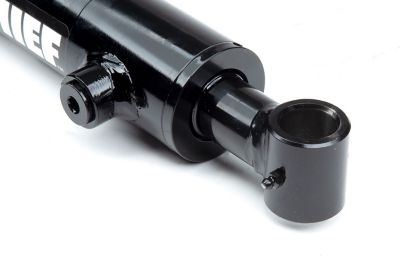

The Chief 3.5 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Measures 32 in. retracted and 56 in. extended
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications
  • Made in the USA
  • Pin diameter 1 in. and rod diameter of 1 in.
  • 3 year limited warranty
  • Column load: 28,860 lb.
Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand Chief
Country of Origin Made in USA
Bore Diameter 3.5 in.
Brand Compatibility Universal
Compatibility Tractors
Extended Length 56 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 28,860 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 1 in.
Port Size SAE 8
Primary Material Steel
Product Height 4 in.
Product Length N/A
Product Weight 58.2 lb.
Product Width 2.5 in.
Retracted Length 32 in.
Rod Diameter 2 in.
Single/Double Acting Double acting
Stroke Distance 24 in.
Warranty 3 Year Limited
Manufacturer Part Number 212751
