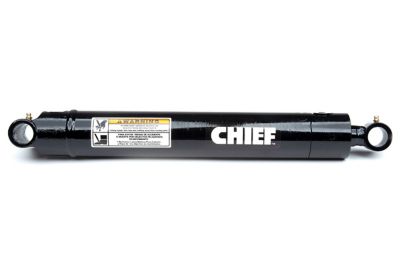

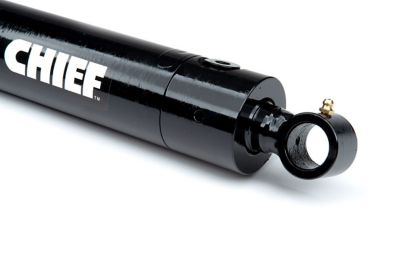

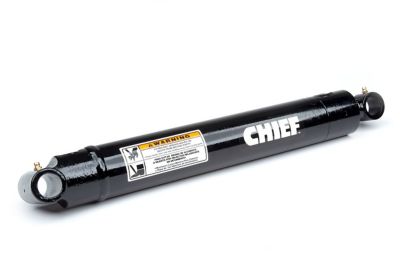

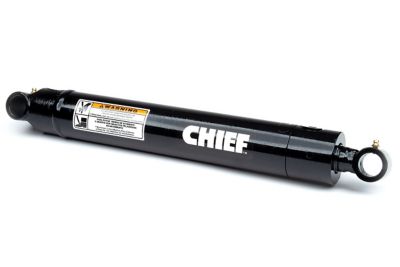

The patented Chief 4 in. Bore x 12 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for a hydraulic cylinder is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the welded hydraulic cylinder's already slender design. Adjustments to the hydraulic cylinder can be quickly and easily made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.
Specification | Description |
---|---|
Brand | Chief |
Country of Origin | Imported |
Bore Diameter | 4 in. |
Brand Compatibility | Universal |
Compatibility | Most applications |
Extended Length | 12 in. |
Hydraulic Cylinder Type | Welded |
Maximum Operating Pressure | 3,000 PSI |
Maximum Weight Capacity | 37,690 lb. |
Model Compatibility | Most applications |
Package Quantity | 1 |
Pin Diameter | 1-1/4 in. |
Port Size | SAE 8 |
Primary Material | Iron |
Product Height | 4-5/8 in. |
Product Length | 4-5/8 in. |
Product Weight | 54 lb. |
Product Width | 5-1/2 in. |
Retracted Length | 19 in. |
Rod Diameter | 2 in. |
Stroke Distance | 12 in. |
Warranty | 3 Year |
Manufacturer Part Number | 207494 |
