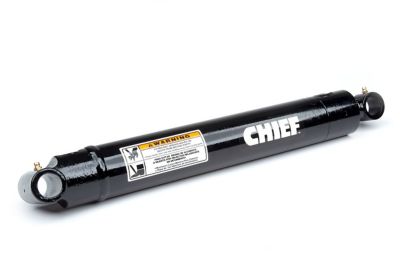

The Chief 4 in. Bore x 48 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The hydraulic cylinder's adjustable 360 rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.

  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Has a 3,000 PSI operating range
  • Ductile iron piston with nylon, glass-filled wear ring is made to last
  • Adjustable 360-degree rotating gland allows you to make port alignments as needed
  • Rod is a nitrided steel bar with corrosion and scratch resistance for durability
  • Double acting hydraulic cylinder design works efficiently
  • Satin black paint finish gives a simple, stylish look
  • Individually poly bagged farm hydraulic cylinder is made for hard work
  • Made in the USA
  • 3-year limited warranty
  • Has a retracted length of 59 in. and an extended length of 107 in.
  • Port size: SAE 8
  • Column load: 15720 lb.
  • Weight: 125 lb.
Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand Chief
Country of Origin Made in USA
Bore Diameter 4 in.
Brand Compatibility Universal
Compatibility Tractors
Extended Length 107 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 15,720 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 1-1/4 in.
Port Size SAE 8
Primary Material Iron
Product Height 4-5/8 in.
Product Length 4-5/8 in.
Product Weight 125 lb.
Product Width 5-1/2 in.
Retracted Length 59 in.
Rod Diameter 2 in.
Single/Double Acting Double acting
Stroke Distance 48 in.
Warranty 3 Year Limited
Manufacturer Part Number 207516
