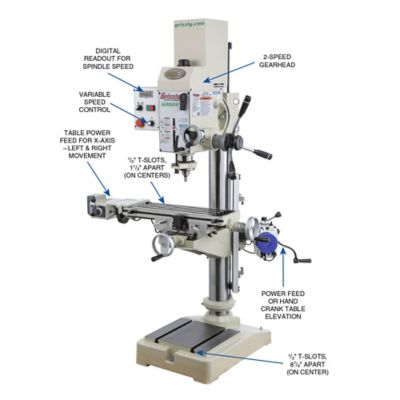

The G0808 20-3/4" Gearhead Drill Press with Cross-Slide Table delivers with many unique features. The vertical power feed is a huge time saver for those projects requiring the table to move up and down the column repetitively or a large distance each time. The variable-speed spindle control combined with a large digital readout allows for optimum control of drilling results. Thanks to the variable frequency drive (VFD), the G0808 has a high-low speed range for 3-phase speed control with single-phase power. The VFD saves you money by increasing the efficiency of the motor and decreasing electricity use. It reduces wear and tear on the motor which extends the life of the drill press. The X- and Y-axis table has a longitudinal powerfeed for milling as well as faster drilling setup convenience.
Specification | Description |
---|---|
Brand | Grizzly |
Country of Origin | Imported |
Amperage | 5.5 A |
Chuck Type | None |
Cord Length | 6 ft. |
Drilling Capacity | 1.56 in. |
Drills Through | Multi-Purpose |
Features | No Additional features |
Horsepower | 1.5 hp |
Maximum Chuck Size | 0 in. |
Maximum Speed | 0 RPM |
Minimum Speed | 0 RPM |
Mounting Location | Freestanding |
Number of Speeds | 2500 |
Portable or Stationary | Stationary |
Product Height | 77.5 in. |
Product Length | 46.5 in. |
Product Weight | 705 lb. |
Product Width | 42 in. |
Spindle Travel Distance | 4.875 in. |
Swing | 20.75 in. |
Table Material | Cast iron |
Variable Speed | Variable Speed |
Voltage | 220 V |
Warranty | 1 |
Work Table Length | 23 in. |
Work Table Width | 7.5 in. |
Manufacturer Part Number | G0808 |
