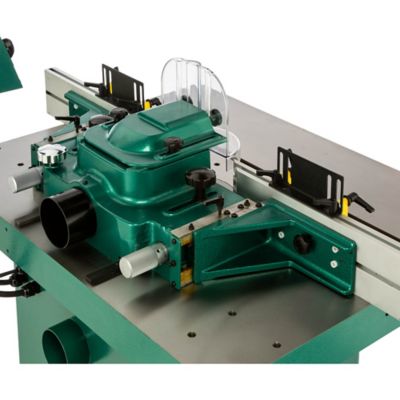

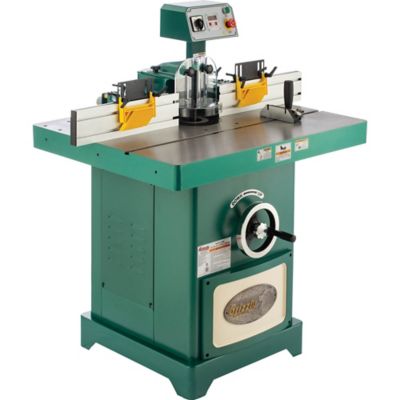

Boost productivity with this feature-rich Spindle Shaper. The G0900 5 HP Deluxe Spindle Shaper features an extra-large fence that supplies the support you'll need for those big jobs.

The independent micro-adjustable fence faces let you dial in cut depths with ultimate precision.

To add to this precision, this shaper includes a digital read-out that displays height in imperial or metric scales.

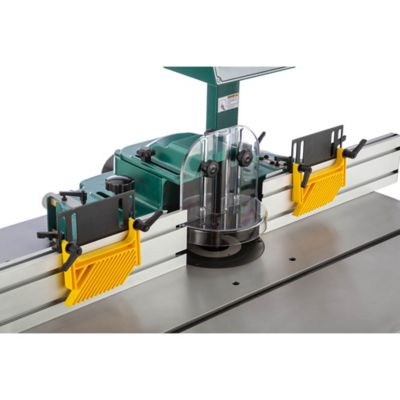

A clear cutter guard enhances visibility and chip extraction. Four feather boards mount directly to the T-slotted fence and table to help keep workpieces on track.

If you want to mount a power feeder for even better control, this shaper includes pre-drilled holes to accommodate one.

The Deluxe Spindle Shaper provides incredible versatility to handle all your shaping needs with three speeds (5000, 7000, and 10,000 RPM), two spindles (3/4" and 1-1/4") and four different spindle openings from 2-1/2" to 7".

The G0900 comes with a 1-year warranty. Parts for the shaper may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

The G0900 manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your spindle shaper.

Made in an ISO 9001 factory

CSA certified

• Motor: 5 HP, 220V, single-phase, 18A
• Table size: 39-1/4" x 31-1/2"
• Table counterbore: 5-3/4" dia. x 5/8" deep
• Floor-to-table height: 35-1/4"
• Spindle travel: 4"
• Spindle sizes: 3/4", 1-1/4"
• Spindle lengths: 3-7/8", 5-7/8"
• Spindle openings: 2-1/2", 4-1/8", 5-1/4", 7"
• Maximum cutter height: 5"
• Maximum cutter diameter: 7"
• Spindle speeds: 5000, 7000, 10,000 RPM
• Overall size: 39-1/2" L x 35-1/2" W x 50-1/2" H
• Approximate shipping weight: 812 lbs.

• Dual 4" dust ports
• DRO for height positioning
• 4-3/4" aluminum fence with featherboard attachments
• Rack-and-pinion fence adjustment
• Fence micro-adjustment knobs
• 4" of fence travel
• Power feeder attachment locations (power feeder not included)
• 3 speeds: 5000, 7000, 10,000
• Quick-release belt tensioner
• Poly-V belt drive
• 3/4", 1-1/4" spindles included
• Fully adjustable clear guard

• Open-end wrenches 14 x 17mm, 22 x 24mm
• Spindle wrench 50mm
• Hex wrenches 3, 6mm
• Combo screwdriver #1
• Starting pin
• Featherboards for table and fence
