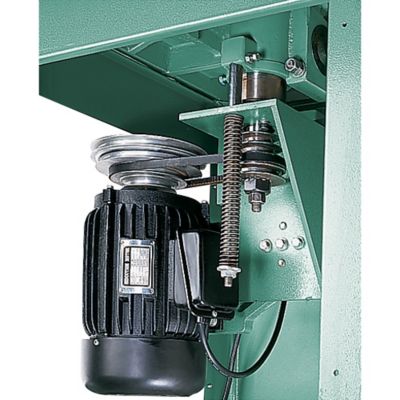

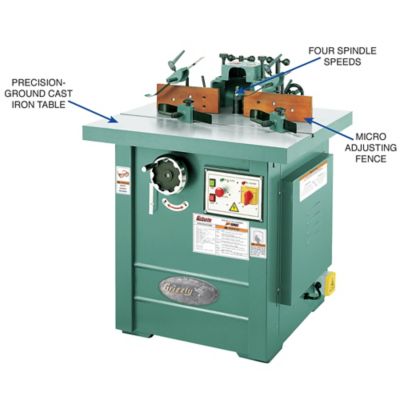

Turn big shaper cutters with confidence. The G5912Z 5 HP Professional Spindle Shaper handles cutters up to 5-7/8" diameter by 5-1/8" tall. The four speed V-belt drive system lets you slow down those big cutters from 10,000 RPM to 3600 RPM.
A cutter guard is bolted to the precision-ground cast-iron table. A micro-adjustable wooden split fence lets you dial in for full edge cutting support. Four spring-steel hold downs increase safety and production by holding the workpiece flat on the table and snug against the fence.
The G5912Z comes with three interchangeable spindles 3/4", 1", and 1-1/4" plus three table inserts: 3" OD x 2" ID, 3-1/2" OD x 3" ID, and 7" OD x 3-1/2" ID.
Like all Grizzly shapers, the G5912Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G5912Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the shaper may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. SPECIFICATIONS:
- Motor: 5 HP, 220V, single-phase, 25A
- Maximum cutter height: 5-1/8"
- Maximum cutter diameter: 5-7/8"
- Spindle diameters: 3/4", 1", 1-1/4"
- Spindle lengths: 6"-7"
- Spindle capacity under nut: 4-1/4", 4-5/8", 5-1/8"
- Spindle speeds: 3600, 5100, 8000, 10,000 RPM
- Spindle travel: 3-1/4"
- Spindle openings: 2", 3", 3-1/2", 7"
- Table counterbore: 7" dia. x 5/8" deep
- Table size: 28" x 35-1/2"
- Floor-to-table height: 34-3/4"
- Footprint: 26" x 27"
- Overall dimensions: 34-3/4" W x 35-1/2" D x 42" H
- Approximate shipping weight: 604 lbs.
- Precision-ground cast-iron table
- Cast-iron miter gauge adjusts 60° left/right
- Spindle height scale in inches and millimeters
- Two wood fence faces
- Fence adjustment includes built-in ratchets and knob-equipped adjusters
- Four spring-steel hold-down assemblies
- Three interchangeable spindles 1/2", 3/4" & 1"
- Three table inserts: 3" OD x 2" ID, 3-1/2" OD x 3" ID, 7" OD x 3-1/2" ID
- Assorted wrenches included
| Specification | Description |
|---|---|
| Brand | Grizzly |
| Country of Origin | Imported |
| Amperage | 30 A |
| Collet Size | 0 in. |
| Cut Through | Wood |
| Features | No additional features |
| Housing Material | Cast iron |
| Maximum Speed | 3450 RPM |
| Minimum Speed | 3600 RPM |
| Number of Speeds | 4 |
| Peak Horsepower | 5 HP |
| Plunge Depth | 0 in. |
| Product Height | 42 in. |
| Product Length | 34.75 in. |
| Product Weight | 562 lb. |
| Product Width | 35.5 in. |
| Tool Power Type | Corded |
| Variable Speed | Variable Speed |
| Voltage | 220V |
| Manufacturer Part Number | G5912Z |
