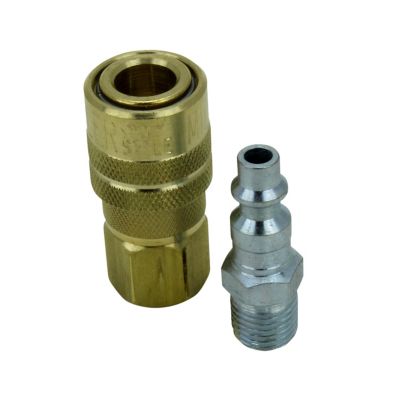

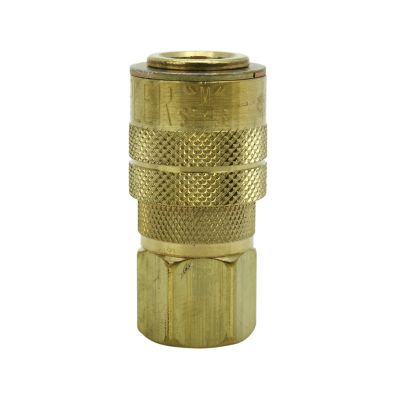

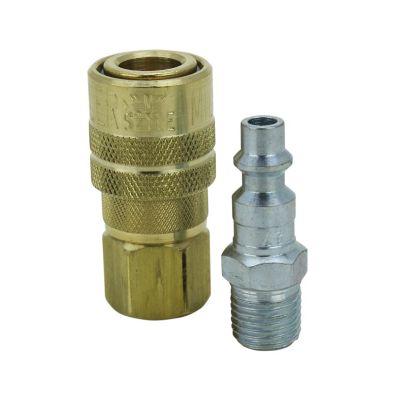

Milton M-Style 1/4 in. FNPT Coupler & 1/4 in. MNPT Plug Kit, S-711
Milton M-Style 1/4 in. FNPT Coupler & 1/4 in. MNPT Plug Kit, S-711
Item # 3990555
$8.99
$8.99
Enhance your pneumatic system with the Milton M-Style Coupler and Plug Kit, featuring a 1/4 in. FNPT coupler and a 1/4 in. MNPT plug. Meticulously crafted, this kit blends a brass body and sleeve coupler with a sturdy steel plug, ensuring enduring performance. With a 1/4" basic flow size and a robust air flow of 40 SCFM, this M-Style coupler and plug combination is engineered to tackle diverse pneumatic tasks. The 300 PSI maximum pressure adds versatility, while the Buna-N seal boosts sealing effectiveness. Elevate your pneumatic capabilities with the Milton M-Style Coupler and Plug Kit, providing durability, quality, and optimal functionality for your air tool requirements.
- PREMIUM QUALITY MATERIAL: Crafted from industrial-grade solid brass and steel to provide exceptional corrosion resistance and a significantly extended lifespan, ideal for heavy-duty applications.
- SECURITY & PROTECTION: Coupler body is equipped with a drag guard sleeve to reduce the risk of accidental disconnects and 3 locking ball connection to provide a powerful hold.
- KWIK-CHANGE FEATURE: Allows for a easy quick connect and disconnect the air fitting from airlines (air compressor or air tool) while eliminating the need for a shut-off valve.
- NPT: 1/4 in. national pipe thread flow size.
- MAX PSI: 300 PSI - 40 SCFM - Temperature up to 250 degrees F.
- M-STYLE KIT INCLUDES: (1) Female Coupler and (1) Male Plug Milton #715, #727
- Made in USA.
| Brand | Milton |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | Universal |
| Connector 1 Size | 0.25 in. |
| Connector 1 Type | NPT |
| Connector 2 Size | 0.25 in. |
| Connector 2 Type | FNPT |
| Maximum Operating Pressure | 300 PSI |
| Package Quantity | 2 |
| Primary Material | Brass |
| Product Height | 4.7 in. |
| Product Length | 1 in. |
| Product Weight | 0.2 lb. |
| Product Width | 3.7 in. |
| Warranty | 1-year |
| Manufacturer Part Number | S-711 |
