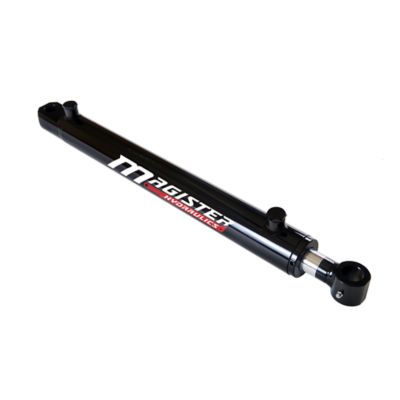

Magister Hydraulics 2 in. Bore x 12 in. Stroke Tang Hydraulic Cylinder
Item # 6016139
Item # 6016139
Designed for maximum performance and durability, the heavy-duty welded Tang Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, construction equipment. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 2-inch bore and 12-inch stroke with tang and narrow tube ends with 3500 PSI. Due to their construction, these rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The Tang cylinders are perfect for any types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- - Extreme load capacity: Welded tang base end, 2.38" honed cold-drawn tubing, 1.25" chrome-plated rod (steel 1045) with welded narrow tube end, and top-quality piston seals make it capable of handling heavy loads with a 12" stroke.
- - High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- - Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- 2-year warranty
- Same Day Free Shipping
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 33 in. |
| Hydraulic Cylinder Type | Welded Double Acting |
| Maximum Operating Pressure | 3500 PSI |
| Maximum Weight Capacity | 9400 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 6 SAE |
| Primary Material | Steel |
| Product Height | 4 in. |
| Product Length | 26 in. |
| Product Weight | 17 lb. |
| Product Width | 4 in. |
| Retracted Length | 21 in. |
| Rod Diameter | 1.25 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 2 Years |
| Manufacturer Part Number | WTG 2x12 |
