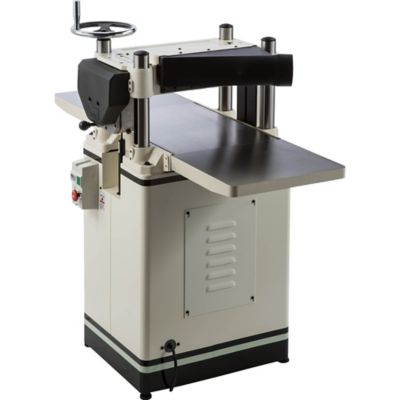

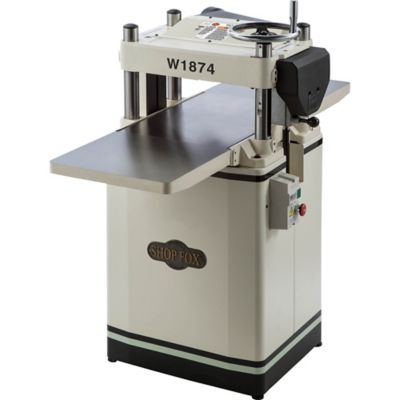

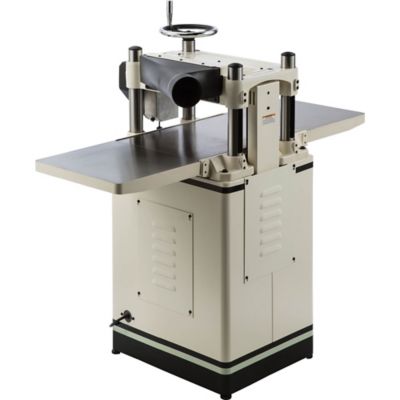

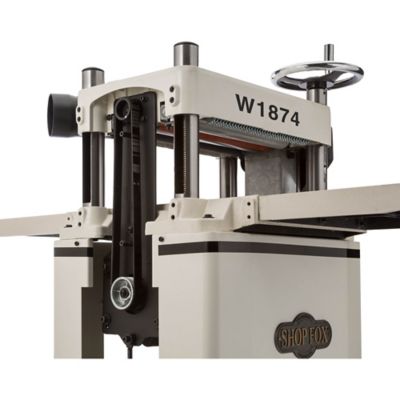

The W1874 15" Fixed Table Planer features a powerful 3 HP motor and 5200 RPM, 4-row helical cutterhead. The 48 carbide inserts have four cutting edges make for ultra-smooth finishes in figured wood and last up to 10 times longer than conventional knives. The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels. The fixed table height design allows for permanent infeed/outfeed roller setups for greater efficiency in production settings. The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high production feed rate. Sturdy four-column supports with twin gas struts on either side make for easy headstock height adjustments.
Specification | Description |
---|---|
Brand | Shop Fox |
Country of Origin | Imported |
Amperage | 0 N/A |
Cut Through | Wood |
Dust Collection Method | 4 in. dust port |
Features | No additional features |
Horsepower | 3 hp |
Housing Material | Cast iron |
Maximum Board Thickness | 6 in. |
Maximum Cut Depth | 0.1875 in. |
Maximum Cuts Per Minute | 20800 CPM |
Maximum Cut Width | 15 in. |
Maximum Speed | 3450 RPM |
Minimum Board Thickness | 0.1875 in. |
Minimum Cut Depth | 0.1875 in. |
Minimum Speed | 3450 RPM |
Number Of Blades | 48 |
Number of Speeds | 1 |
Product Type | Planer |
Portable or Stationary | Stationary |
Product Height | 47.5 in. |
Product Length | 49 in. |
Product Weight | 302 lb. |
Product Width | 25 in. |
Table Length | 21 in. |
Table Width | 15 in. |
Tool Power Type | Corded |
Variable Speed | Single Speed |
Voltage | 230 V |
Warranty | 2 |
Manufacturer Part Number | W1874 |
