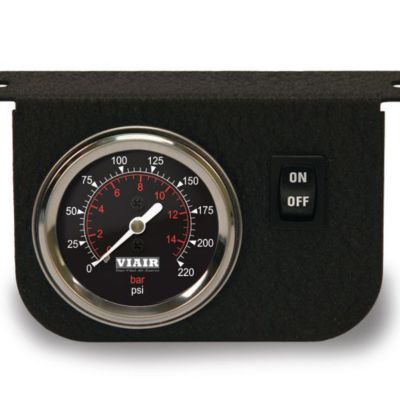

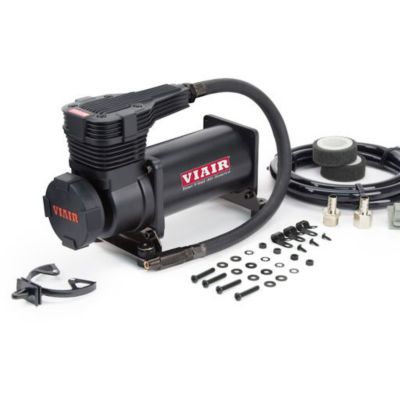

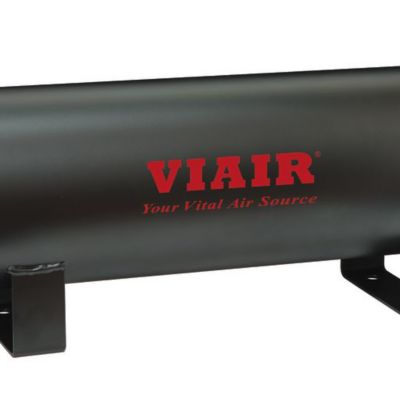

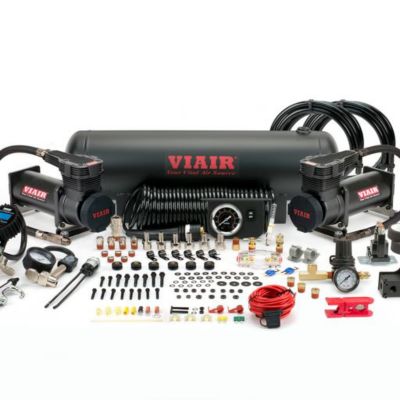

VIAIR's Gen. 2 Dual 425C Onboard Air System (OBA) is our fastest filling OBA, featuring our new 425C Gen.2 compressors capable of putting out 4.94 CFM at 0 PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 425C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
Specification | Description |
---|---|
Brand | VIAIR |
Country of Origin | Imported |
Air Delivery SCFM At 40 PSI | 3.86 CFM |
Air Delivery SCFM At 90 PSI | 2.74 CFM |
Airflow Volume | 4.94 CFM |
Air Outlet Size | 14 in. NPT |
Amperage | 60 Amps |
Compressor Horsepower | 0.25 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Tank Capacity | 2.5 gal |
Compressor Type | Oil less |
Compressor Voltage | 12V |
Drain System | Petcock |
Drive Type | Direct Drive |
Features | Fastest filling compressor in the market |
Number Of Power Speeds | Single |
Power Type | 12 Volt, 12V |
Primary Color | Black |
Primary Material | Steel |
Product Height | 6.59 in. each compressor |
Product Length | 9.25 in. each compressor |
Product Weight | 11.1 lb. |
Product Width | 4.14 in. each compressor |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Warranty | 1 Year manufacture defect |
Manufacturer Part Number | 20175 |
