Camplux 12 V Water Pressure Diaphragm Pump with Filter, 3.3 GPM
Camplux 12 V Water Pressure Diaphragm Pump with Filter, 3.3 GPM
Item # 148553499
$79.99
Neighbor’s Club Members earn points with purchases.
$79.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
CAMPLUX 3.3 GPM 12V water pump's advantages include its versatility, efficiency, and portability for mobile applications like RVs and boats, supported by features like self-priming, dry-run protection, and low-noise operation. Usage scenarios include supplying water to multiple fixtures in RVs, providing a washdown pump for boats, and handling general water delivery for garden or small-scale agricultural tasks.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

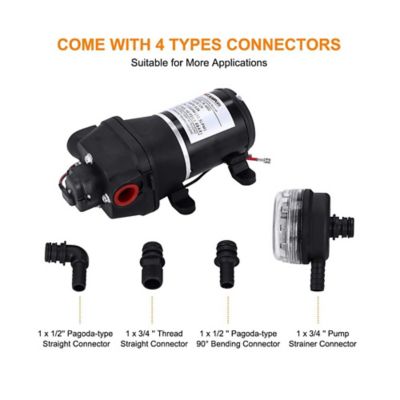

- Two 1/2 and 3/4 connection Sizes, meet water flow requirements for various applications, such as garden irrigation, yachts and boats, and outdoor showers.

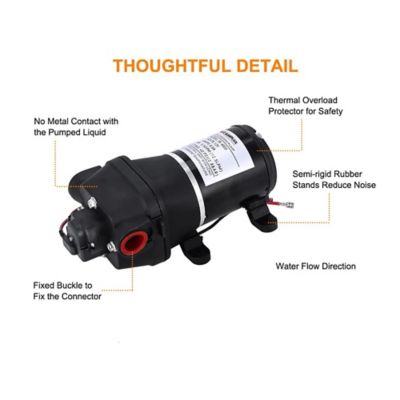

- Anti-Vibration & Low Noise - Rubber feet, reduce noise from vibration, without the constant disturbance of a loud pump, idea for camping and RV.
- Self Priming Water Pump - Capable of self-priming up to 8 vertical ft, allows it to be mounted above tank, able to run dry, CE certified.
- Adjustable Pressure Switch - Max pressure 40 PSI, control water flow and pressure, automatically start and stop when you turn on and off the faucet.
- Application - Easy to install, include 1 x Strainer Filter, widely used for agricultural spraying, car wash, outdoor camping shower, pet shower, garden sprinklers, and boat, yacht, caravan, motor home sink.
- Specification - Water Flow:3.3 GPM, Adjustable MAX Pressure: 40 PSI(2.8 BAR), 12V DC, DC, Max AMP: 8 A, Water Input/Output:1/2" NPT or 3/4" NPT

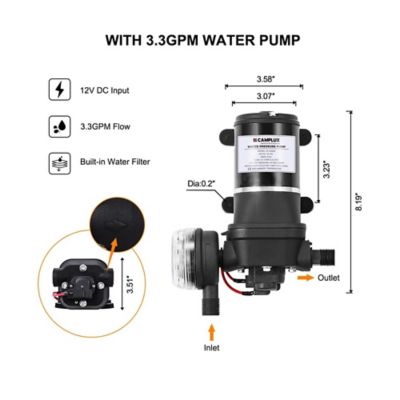

- Dimensions: 8.2 in. x 3.6 in. x 3.5 in.; weight: 4.7 lb.
- Camplux Customer Support: Provide comprehensive customer support services, including online services, product warranties, user manuals, troubleshooting guides.
| Brand | Camplux |
|---|---|
| Country of Origin | Imported |
| Amperage | 8 Amps |
| Body Material | Other |
| Compatible Pipe Material | Plastic |
| Compatible Well Diameter | 0 in. |
| Discharge Connection | None |
| Discharge Diameter | 3/4 in. |
| Discharge Rate at 0 ft. | 3.3 GPM |
| Discharge Rate at 25 ft. | 2.5 GPM |
| Discharge Rate at 50 ft. | 2 GPM |
| Features | Self Priming |
| Head Pressure | 40 PSI |
| Horsepower | 3.3GPM |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 3.3 GPM |
| Maximum Head Lift | 8 in. |
| Maximum Operating Depth | 0 in. |
| Maximum Operating Temperature | 140degF |
| Minimum Operating Temperature | 32degF |
| Power Cord Length | 0 in. |
| Power Type | 12 Volt |
| Product Height | 5 in. |
| Product Length | 4.2 in. |
| Product Weight | 4 lb. |
| Product Width | 13.5 in. |
| Motor Type | DC motor |
| Voltage | 12V |
| Warranty | 1 Year |
| Manufacturer Part Number | JK-4000 |
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: It does appear to be submersible, so wht do i place in my storage tank for the pump to draw?
a year ago1 Answer
- A: Hello Pecan Pope, You will need to connect a hose line to the inlet of the pump that leads into the water supply, and a hose to the outlet of the pump that leads to wherever you'd like the displaced water to end up. Please ensure all electrical connections remain outside of the water supply.a year agoHelpful?
Q: does this pump shut off if the outlet valve is closed as an on demand feature?
a year ago1 Answer
- A: Hi Neighbor! Built-in adjustable working pressure switch starts if the tap is turned on and stops if the tap is turned offa year agoHelpful?
Q: At 12 volts how many amps does it draw?
3 years ago1 Answer
- A: It is available with 8 amps for it.3 years agoHelpful?
Q: What is the max depth that this unit will pull water?
4 years ago1 Answer
- A: please contact manufacturer for more information.4 years agoHelpful?
Q: Was wondering if this could be wired for ac?
6 years ago1 Answer
- A: No. This pump is strictly for DC.6 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: It does appear to be submersible, so wht do i place in my storage tank for the pump to draw?
a year ago1 Answer
- A: Hello Pecan Pope, You will need to connect a hose line to the inlet of the pump that leads into the water supply, and a hose to the outlet of the pump that leads to wherever you'd like the displaced water to end up. Please ensure all electrical connections remain outside of the water supply.a year agoHelpful?
Q: does this pump shut off if the outlet valve is closed as an on demand feature?
a year ago1 Answer
- A: Hi Neighbor! Built-in adjustable working pressure switch starts if the tap is turned on and stops if the tap is turned offa year agoHelpful?
Q: At 12 volts how many amps does it draw?
3 years ago1 Answer
- A: It is available with 8 amps for it.3 years agoHelpful?
Q: What is the max depth that this unit will pull water?
4 years ago1 Answer
- A: please contact manufacturer for more information.4 years agoHelpful?
Q: Was wondering if this could be wired for ac?
6 years ago1 Answer
- A: No. This pump is strictly for DC.6 years agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
Customers Also Bought
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
Reviews
Customer Images and Videos
1 to 3 of 5 Reviews .
1 – 3 of 5 Reviews
Most Recent
Ok
Review 1
5 out of 5 stars.
Modified to work
9 months ago
The connections were quite a bit different than my old pump so I had to change a lot of things in the mounting bolt pattern was different. The pump seems to work fine though. The 2 fittings that go into the pump are only sealed with one o'ring. Double o'ring's would have been better. And I'm not sure about the clips that hold the fittings in. We will see.
Yes, I recommend this product.
Texas
Reviews 2
5 out of 5 stars.
It worked great
2 years ago
Great product will buy again
SweepstakesYes
Yes, I recommend this product.
Virginia
Reviews 2
5 out of 5 stars.
Great pump works as intended with little fuse.
5 years ago
Easy setup connect hose then power source and the pump does what it was designed to do. I use it to transfer water from a catch basin to the RV holding tank. I used the recommended setup on the instructions so when there's a need for water it's available at the flick of a switch. Power source is solar charged so it's a self sustained system.
Sweepstakes EntryYes
Yes, I recommend this product.
