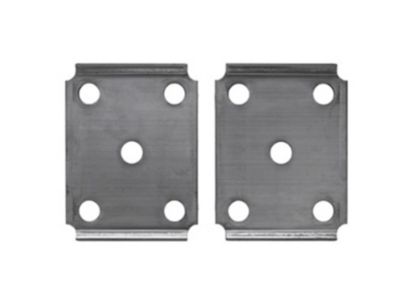

Carry-On Trailer Spring Tie Plate, 5,200 lb. Capacity Per Pair
Carry-On Trailer Spring Tie Plate, 5,200 lb. Capacity Per Pair
Item # 109137199
$24.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Carry-On Trailer Spring Tie Plate, 5,200 lb. Capacity Per Pair
Item # 109137199
$24.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Carry-On Trailer Spring Tie Plate helps hold the springs to the axle. The spring tie plate has a flat end design. The weight capacity per pair of Carry-On Trailer spring tie plates is 5,200 lb. The spring tie plate can be used with both round and square U-bolts.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Flat end spring tie plate
- Use the spring tie plate with U-bolts both square and round
- Capacity per pair of Carry-On Trailer spring tie plates: 5,200 lb.
- Carry-On Trailer spring tie plate holds the springs to the axle
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Axle Capacity | 5,200 lb. |
| Center Of Spring Eye to Center Of Spring Eye Length | 0 in. |
| Compatibility | Trailers |
| End Type | Other |
| Leaf Thickness | 0 in. |
| Maximum Weight Capacity | 5,200 lb. per pair |
| Mounting Hole Inner Diameter | 1 in. |
| Number Of Leaves | 0 |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6.875 in. |
| Product Length | 4 in. |
| Product Weight | 2.45 lb. |
| Product Width | 5-1/4 in. |
| Spring Capacity Per Pair | 5,200 lb. |
| Manufacturer Part Number | 650T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: WHAT SIZE U BOLTS CAN BE USED WITH THESE?
2 years ago1 Answer
- A: Carry-On part #653T fits most 3" axle tubes. includes (2) 9/16"-18 round shoulder u-bolts, (4) 9/16" nylock nuts. This will do one side. You will also need 650T which includes (2) tie plates.2 years agoHelpful?
Q: Will these plates accommodate a three inch axle?
4 years ago1 Answer
- A: CARRY-ON steel trailer axle tie plates fit most 5200 lbs. rated axles with a 3" diameter axle tube. Can be used with square or round U-bolts.4 years agoHelpful?
Q: Which side faces up or down?
5 years ago1 Answer
- A: flat side up --- one with slight bends down does this help you let us know if you need further help thank you5 years agoHelpful?
Q: Will this work with 3 1/8 in I bolts
5 years ago1 Answer
- A: the tie plate is intended to work with Part # 11ubolt rnd9/16 x18 let me know if this helps you thank you5 years agoHelpful?
Q: what width leaf spring will these fit?
8 years ago1 Answer
- A: #650 Tie Plate : up to a 2" wide spring will fit this tie plate.8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: WHAT SIZE U BOLTS CAN BE USED WITH THESE?
2 years ago1 Answer
- A: Carry-On part #653T fits most 3" axle tubes. includes (2) 9/16"-18 round shoulder u-bolts, (4) 9/16" nylock nuts. This will do one side. You will also need 650T which includes (2) tie plates.2 years agoHelpful?
Q: Will these plates accommodate a three inch axle?
4 years ago1 Answer
- A: CARRY-ON steel trailer axle tie plates fit most 5200 lbs. rated axles with a 3" diameter axle tube. Can be used with square or round U-bolts.4 years agoHelpful?
Q: Which side faces up or down?
5 years ago1 Answer
- A: flat side up --- one with slight bends down does this help you let us know if you need further help thank you5 years agoHelpful?
Q: Will this work with 3 1/8 in I bolts
5 years ago1 Answer
- A: the tie plate is intended to work with Part # 11ubolt rnd9/16 x18 let me know if this helps you thank you5 years agoHelpful?
Q: what width leaf spring will these fit?
8 years ago1 Answer
- A: #650 Tie Plate : up to a 2" wide spring will fit this tie plate.8 years agoHelpful?
