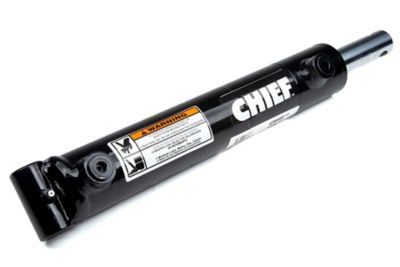

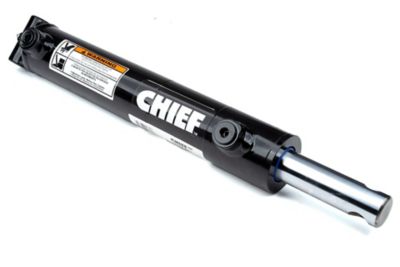

Chief 2 in. Bore x 72 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

3.2

(5 Reviews)

|

Item # 130765899

$449.99
A woman outside with a dog
A woman outside with a dog

Chief 2 in. Bore x 72 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

Chief 2 in. Bore x 72 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

Item # 130765899

$449.99
or
or

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2 in. Bore x 72 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

Item # 130765899

$449.99
or
or
financeCard Logo
$38/mo.†  suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 72 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
  • SAE 8 O-ring ports for easy hookup
  • For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
  • All seals are manufactured to US specifications
  • 3-year limited warranty
  • Piston: ductile iron with wear ring
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision honed steel
  • Rod is hard chrome plated and rod end mount is rod eye drilled for durability
  • Base end mount: steel cross-tube with grease zerk
  • Tube seal: Buna O-ring with Polytemp hytrel backup; rod seal: deep polypak with B lip design
  • Rod wiper: Urethane, snap-in
  • Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
  • Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
  • 3,000 PSI operating range
  • Measures 80 in. retracted and 152 in. extended
  • Column load: 1,130 lb.
  • Pin diameter of 0.75 in. and rod diameter of 1.25 in.

Similar Items

  1. Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $259.99
  2. Top Rated
    Chief 2 in. Bore x 48 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 2 in. Bore x 48 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $299.99
  3. Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $289.99
  4. Chief 2 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $399.99
  5. Chief 2 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $229.99
  6. Chief 2 in. Bore x 8 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 8 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter

    $189.99
  7. Chief 2.5 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2.5 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $226.80
  8. Top Rated
    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $284.95
  9. Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI

    $151.20
  10. Chief 3.5 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 3.5 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI

    $284.95
  11. Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $329.99
  12. Top Rated
    Chief 4 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 4 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $579.99

Items You May Like

  1. Top Rated
    Maxim 4 in. Bore x 24 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
    5.0 out of 5 stars with 5 reviews (5)

    Maxim 4 in. Bore x 24 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

    $319.99
  2. Chief 4 in. Bore x 30 in. Stroke WT Welded Hydraulic Cylinder, 2in. Rod Diameter
    4.5 out of 5 stars with 4 reviews (4)

    Chief 4 in. Bore x 30 in. Stroke WT Welded Hydraulic Cylinder, 2in. Rod Diameter

    $499.99
  3. Top Rated
    Chief 4 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 5 reviews (5)

    Chief 4 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $379.99
  4. Chief 3 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.5 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 3 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.5 in. Rod Diameter, 3,000 PSI

    $279.99
  5. Top Rated
    Maxim 4 in. Bore x 20 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
    5.0 out of 5 stars with 3 reviews (3)

    Maxim 4 in. Bore x 20 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

    $349.99
  6. Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $329.99
  7. Top Rated
    Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
    5.0 out of 5 stars with 1 reviews (1)

    Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

    $239.99
  8. Top Rated
    Maxim 3 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
    5.0 out of 5 stars with 1 reviews (1)

    Maxim 3 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

    $209.99
  9. Chief 3.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 3.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI

    $355.71
  10. Top Rated
    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $284.95
  11. Chief 4 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 4 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $384.98
  12. Top Rated
    Maxim 3.5 in. Bore x 18 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Maxim 3.5 in. Bore x 18 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

    $229.99

Customers Also Bought

  1. Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $259.99
  2. Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $289.99
  3. Top Rated
    Chief 2 in. Bore x 48 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 2 in. Bore x 48 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $299.99
  4. Chief 2 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 60 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $399.99
  5. Chief 2 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI

    $229.99
  6. Chief 2.5 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2.5 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $226.80
  7. Top Rated
    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.8 out of 5 stars with 4 reviews (4)

    Chief 2.5 in. Bore x 24 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $284.95
  8. Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI

    $151.20
  9. Chief 2 in. Bore x 8 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2 in. Bore x 8 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter

    $189.99
  10. Chief 3.5 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 3.5 in. Bore x 12 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.75 in. Rod Diameter, 3,000 PSI

    $284.95
  11. Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 4 in. Bore x 10 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 2 in. Rod Diameter, 3,000 PSI

    $329.99
  12. Chief 2.5 in. Bore x 36 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI
    4.7 out of 5 stars with 3 reviews (3)

    Chief 2.5 in. Bore x 36 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.375 in. Rod Diameter, 3,000 PSI

    $271.38

Reviews

Rating Snapshot

Select a row below to filter reviews.
2 reviews with 5 stars.
1 review with 4 stars.
0 reviews with 3 stars.
0 reviews with 2 stars.
2 reviews with 1 star.

Overall Rating

3.2
2 out of 3 (67%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

  • Review photo 1.
  • satisfaction
  • efficiency
  • purchase
  • secure
  • warranty
  • website
1 to 4 of 5 Reviews .
1 – 4 of 5 Reviews
Review 1

Single acting …not really

2 years ago
The cylinder clearly states that it it can be used as a single acting or double acting cylinder. Since pictures don’t always depict the actual product, I was thinking that it came in a single acting form. However, it does not. It’s double acting, and if you use a vent/valve, it voids the warranty and shortens the life of the cylinder. Basically bad advertising. Disappointed and dissatisfied.
Perfection, Nevada
Review 1

It's all Wong like Guangdong

2 years ago
Has a stupid port instead of having the same NPT threads like all the hoses and fittings at TSC. Wasting additional time and money looking for NPT to SAE adapters.
SweepstakesYes

No, I do not recommend this product.

Alberta Canada
Review 1

Great Product

2 years ago

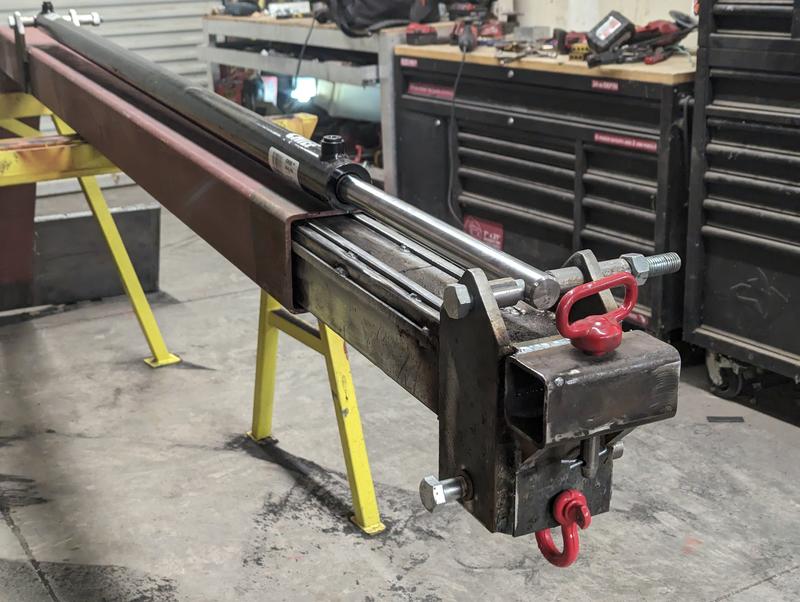

Cylinder was awesome. But we had to weld a cross tube on the end to make it work. Would have been great if they came with the cross tube already on there.
