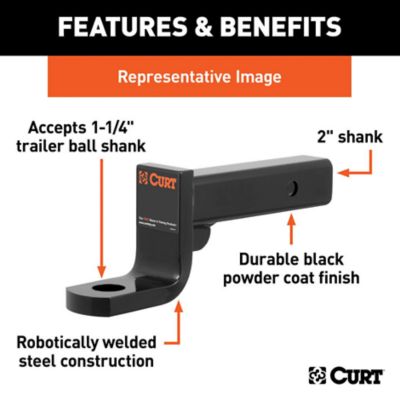

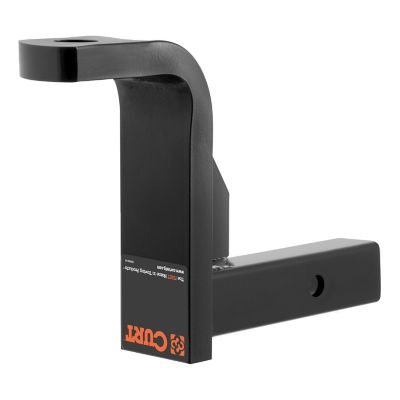

When you demand more from your towing equipment, CURT heavy-duty ball mounts answer the call. For towing those especially heavy loads and bulky trailers, you need a ball mount that knows how to handle itself when the going gets tough. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a few different drop height options and the ability to flip for optional rise, CURT heavy-duty ball mounts are built to work as hard as you do, from sunup to sundown. This HD ball mount has a gross trailer weight capacity of 10,000 lbs. and tongue weight rating of 1,000 lbs. It measures 9-3/8" in length, has a 8" drop and can be flipped to provide 6-3/4" of rise. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.
Specification | Description |
---|---|
Brand | CURT |
Country of Origin | Made in USA |
Ball Mount Maximum Weight Capacity | 10000 lb |
Ball Mount Receiver Opening Size | N/A |
Ball Mount Size | N/A |
Brand Compatibility | N/A |
Drop Length | 8 in. |
Features | Powder coat finish |
Finish | Powder-Coated |
Hitch Class Rating | Class IV |
Hitch Type | Other |
Maximum Rise | 0 N/A |
Model Compatibility | Varies |
Primary Material | Synthetic |
Product Height | 2.5 in. |
Product Length | 13.5 in. |
Product Weight | 12 lb. |
Product Width | 9.13 in. |
Tube Style | Other |
Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Manufacturer Part Number | 45338 |
