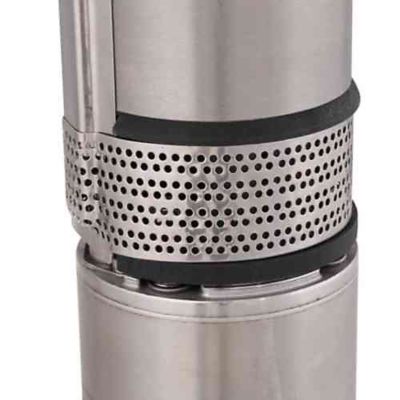

ECO-FLO Products Inc. 1 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
$549.99
ECO-FLO Products Inc. 1 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
ECO-FLO Products Inc. 1 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
Item # 116837699
$549.99
or
or
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 1 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
Item # 116837699
$549.99
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.
The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump has 1-1/4 in. FNPT discharge connection, includes built in check valve and provides smooth water passage for maximum efficiency. It comes with heavy-duty cast iron construction with a thermoplastic volute. This well pump is compatible with poly, PVC and steel pipe materials.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Reliable contractor type vertical switch operates in basins 14 in. in diameter
- 1/2 HP - 5,100 GPH
- Heavy-duty cast iron construction with a thermoplastic volute
- Sump pump has a built-in thermal overload motor protection
- Vortex, cast iron impeller; 1/2 in. solids handling
- Sump pump system is available in black
- Compatible with poly, PVC and steel pipe materials
- 1-1/4 in. FNPT discharge connection; includes a built-in check valve
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 7.1 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | Steel, Poly, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 10 gpm |
| Discharge Rate at 25 ft. | 10 gpm |
| Discharge Rate at 50 ft. | 10 gpm |
| Features | 1 1/4 in. FNPT discharge connection, incudes built-in check valve. Stainless steel pump shaft is precision ground for exact bearing fit and straightness. Stainless steel inlet screen. |
| Horsepower | 1 HP |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 10 GPM |
| Maximum Head Lift | 250 ft. |
| Maximum Operating Depth | 250 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Type | Electric |
| Product Height | 30.59 in. |
| Product Length | 3.54 in. |
| Product Weight | 30.1 lb. |
| Product Width | 3.54 in. |
| Motor Type | PSC Motor |
| Voltage | 230v |
| Warranty | 3 Year |
| Manufacturer Part Number | EFSUB10-122 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What size breaker is recommended for this pump
11 months ago1 Answer
- A: Hello, thank you for your question. This requires a 20amp Breaker.10 months agoHelpful?
Q: will pump work with 120 line voltage
4 years ago1 Answer
- A: This pump is designed to work with 230 volts.4 years agoHelpful?
Q: WHY WOULD YOU NOT INCLUDE GPH AND VERTICAL LIFT IN THE SPECS??? WHAT A WASTE OF TIME LOOKING HERE
4 years ago1 Answer
- A: The gallons per minute your pump pumped, ie 10 GPM.4 years agoHelpful?
Q: how many gpm on this pump?
5 years ago1 Answer
- A: It is 12 GPM.5 years agoHelpful?
Q: Tractor Supply (TS) says 2 year limited warranty, your spec sheet says 1 year warranty. Which of these are included with purchase at TS (not including purchase of extra protection plan)?
6 years ago1 Answer
- A: mwambach, The "spec. sheet" as well as the box of this pump indicates a 1 year warranty. The 1 year warranty is fully backed by ECO-FLO Products (the manufacturer). If you have further questions please reach out to us at 877-326-3561. Thanks!6 years agoHelpful?
Q: Does the ECO-FLO EFSUB10-122 need an external control control box?
6 years ago1 Answer
- A: mwambach, The EFSUB10-122 is a 1 horse power submersible well pump in a 2-wire version. The "2-wire" versions do NOT utilize a control box as the start capacitors are in the total pump design. On the other hand a "3-wire" version would have to have a control box to work properly. Further questions, please do not hesitate to reach out to our experts at 877-326-3561. Thanks.6 years agoHelpful?
Q: Will it pump a 350 deep well
6 years ago1 Answer
- A: Kimmie70, This question would need some additional information to be answered appropriately. Type of pipe being used, water table height, etc. We recommend that you reach out to our experts at 877-326-3561. Thanks.6 years agoHelpful?
Q: What the GPM of this pump and range it can be set
7 years ago1 Answer
- A: driller151 This model can be set at 250' and will have a flow of 9.7gpm at that depth. Thanks Customer Service7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What size breaker is recommended for this pump
11 months ago1 Answer
- A: Hello, thank you for your question. This requires a 20amp Breaker.10 months agoHelpful?
Q: will pump work with 120 line voltage
4 years ago1 Answer
- A: This pump is designed to work with 230 volts.4 years agoHelpful?
Q: WHY WOULD YOU NOT INCLUDE GPH AND VERTICAL LIFT IN THE SPECS??? WHAT A WASTE OF TIME LOOKING HERE
4 years ago1 Answer
- A: The gallons per minute your pump pumped, ie 10 GPM.4 years agoHelpful?
Q: how many gpm on this pump?
5 years ago1 Answer
- A: It is 12 GPM.5 years agoHelpful?
Q: Tractor Supply (TS) says 2 year limited warranty, your spec sheet says 1 year warranty. Which of these are included with purchase at TS (not including purchase of extra protection plan)?
6 years ago1 Answer
- A: mwambach, The "spec. sheet" as well as the box of this pump indicates a 1 year warranty. The 1 year warranty is fully backed by ECO-FLO Products (the manufacturer). If you have further questions please reach out to us at 877-326-3561. Thanks!6 years agoHelpful?
Q: Does the ECO-FLO EFSUB10-122 need an external control control box?
6 years ago1 Answer
- A: mwambach, The EFSUB10-122 is a 1 horse power submersible well pump in a 2-wire version. The "2-wire" versions do NOT utilize a control box as the start capacitors are in the total pump design. On the other hand a "3-wire" version would have to have a control box to work properly. Further questions, please do not hesitate to reach out to our experts at 877-326-3561. Thanks.6 years agoHelpful?
Q: Will it pump a 350 deep well
6 years ago1 Answer
- A: Kimmie70, This question would need some additional information to be answered appropriately. Type of pipe being used, water table height, etc. We recommend that you reach out to our experts at 877-326-3561. Thanks.6 years agoHelpful?
Q: What the GPM of this pump and range it can be set
7 years ago1 Answer
- A: driller151 This model can be set at 250' and will have a flow of 9.7gpm at that depth. Thanks Customer Service7 years agoHelpful?
