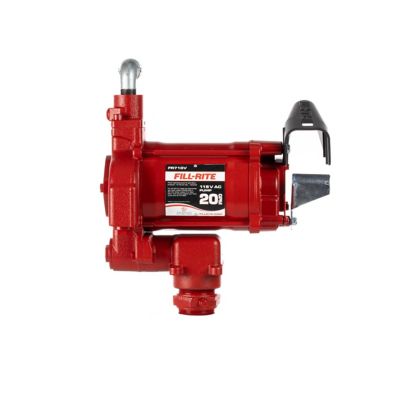

The Fill-Rite 115V 20 GPM Fuel Transfer Pump is a heavy-duty fuel transfer pump built for performance and longevity. Designed with all cast-iron construction, thermal overload protection, and provided in a variety of supplied configurations, it's no surprise why this fuel transfer pump is considered the most dependable AC pump in the industry. You name the application and the durability and dependability of Fill-Rite's 20 GPM FR700V Series will meet the challenge. These rugged pumps are also backed by the industry's most stringent safety standards like UL/cUL, ATEX, CE, and carry Fill-Rite's Limited Lifetime Warranty.
Specification | Description |
---|---|
Brand | Fill-Rite |
Country of Origin | Made in USA |
AC or DC Powered | AC |
Amperage | 5.5A |
Body Materials | Cast Iron |
Compatible Fluids | Diesel |
Discharge Connection | Threaded Female |
Discharge Diameter | 0.75 in. |
Duty Cycle | 30 min. |
Features | Self Priming |
Horsepower | 0.33 HP |
Hose Diameter | 0.75 in. |
Inlet Connection | Threaded Female |
Inlet Diameter | 1.25 in. |
Intended Use Grade | Commercial |
Maximum Flow Rate | 20 GPM |
Maximum Head Lift | 720 in. |
Maximum Operating Pressure | 23 PSI |
Maximum Operating Temperature | 140 deg. |
Minimum Operating Pressure | 15 PSI |
Minimum Operating Temperature | -40 deg. |
Power Type | Electric |
Product Height | 11.75 in. |
Product Length | 6.75 in. |
Product Weight | 45.2 lb. |
Product Width | 14.5 in. |
Voltage | 115V |
Warranty | Limited Lifetime |
Manufacturer Part Number | FR710VN |
