Fimco 65 gal. 12V 4.5 GPM Broadcast Boom UTV Sprayer, 60 PSI
Fimco 65 gal. 12V 4.5 GPM Broadcast Boom UTV Sprayer, 60 PSI
4.171 Reviews
Item # 135798599
$1049.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
Fimco 65 gal. 12V 4.5 GPM Broadcast Boom UTV Sprayer, 60 PSI
4.171 Reviews
Item # 135798599
$1049.99
or
or
$44/mo.† suggested payments with 24 Months Financing or earn $52 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026Apply now
Valid 5/15/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

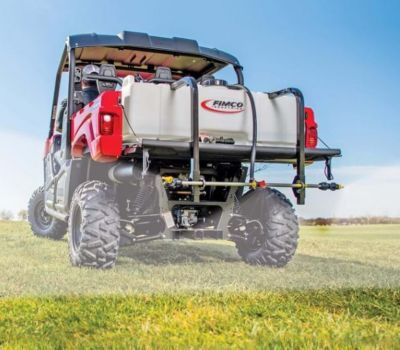

The Fimco 65 gal. Broadcast Boom UTV Sprayer is in a class by itself and is the only UTV sprayer in the industry that does not require the tailgate to be down or removed for a boom to be utilized. The command center manifold comes complete with quick-connect fittings, built-in ball valves and a pressure gauge port that allows you to fine tune chemical applications. This agriculture sprayer is chemical resistant and provides up to 50 ft. of spraying diameter.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 4.5 GPM/60 PSI automatic demand diaphragm pump

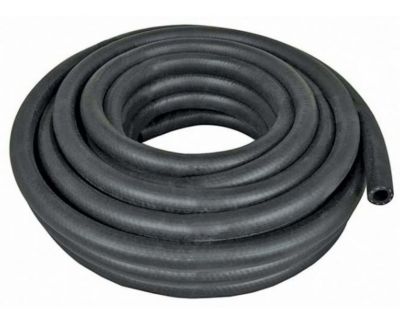

- Broadcast Boom UTV sprayer hose measures 25 ft. x 3/8 in.
- Chemical-resistant hose provides up to 50 ft. of spraying diameter

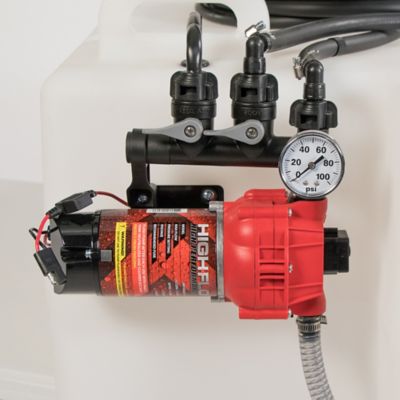

- Command center manifold with quick-connect fittings, built-in ball valves and a pressure gauge port that allows you to fine tune chemical applications

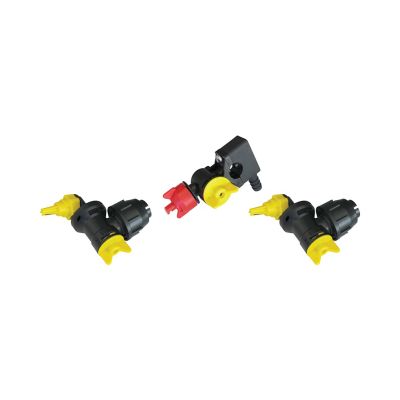

- Agriculture sprayer includes exclusive nozzle bodies and spray tips with on/off valves and drip-free nozzle technology
- 3-nozzle spray pattern delivers 36 ft. of total coverage
- Easy-grip design allows for quick boom installation/removal
- 32-oz. measuring cup is attached to the lid
- Use protection on both our 8 ft. lead wire and pump
- 3-point Broadcast Boom sprayer has high-performance 12V pump
- When combined with 4.5 GPM pump, wand output is enhanced and it delivers spray pattern up to 40 ft. horizontally and 28 ft. vertically
- Fimco sprayer uses exclusive handgun/hose brackets to secure the hose
- Each end nozzle sprays 15 ft. and center nozzle sprays 6 ft. (nozzles can be used independently)
- Boom can be used with the UTV's tailgate closed or open
- Garden hose port secures your hose for safe and easy 1-person filling
- Adjustable spray tip
- Made in the USA
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 140 in |
| Boom Nozzle Count | 7 |
| Boom Style | Fixed Boom |
| Chemical Compatibility | Herbicide, Pesticide, Fertilizer, Insecticide, Fungicide |
| Features | Handgun Included |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | None |
| Power Type | 12 Volt |
| Product Height | 19 in. |
| Product Length | 47 in. |
| Product Weight | 72 lb. |
| Product Width | 35 in. |
| Pump Type | Diaphragm |
| Boom Width | 3.5 ft |
| Tank Capacity | 65 gal. |
| Spray Method | Boom Spraying (Broadcast), Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302946 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 26 Questions
Newest questions
Q: What is the rate per acre/ is it adjustable?
12 days ago2 Answers
- A: Yes, the application rate is fully adjustable. Because this sprayer uses a standard 12V pump system, there isn’t one single "rate per acre." Instead, your application rate (Gallons Per Acre, or GPA) is dynamic and depends entirely on three main factors: your vehicle’s speed, the nozzle size, and the operating pressure (PSI). How to Adjust Your Rate: The Bypass Valve: This unit is equipped with an adjustable bypass line on the manifold. By opening this valve, you divert a portion of the fluid back into the tank, allowing you to fine-tune and lower your boom pressure. Closing it increases the pressure to the boom. Vehicle Speed: Driving faster reduces the amount of fluid applied per acre, while driving slower increases it. Tip Calibration: For exact numbers, you can reference the calibration chart included in the owner's manual. For example, operating a standard broadcast setup at a steady 5 MPH at 30 PSI will give you a completely different GPA than running at 2 MPH at 40 PSI. Always calibrate your speed and pressure with clean water before mixing your chemical to ensure you hit your target rate.11 days agoHelpful?
Q: Can i add the foldable boom to this later?
22 days ago2 Answers
- A: Yes, you absolutely can add a folding boom to this unit later! Because this specific UTV sprayer comes configured as a broadcast nozzle system (using a larger 1/2" feeder hose), upgrading to a multi-nozzle folding boom will require down-sizing the plumbing lines to ensure proper pressure distribution. To make the switch, you will need: A 3/8" hose barb for the manifold and a 3/8" feeder hose to run to the boom Or you can purchase a conversion kit that allows you to go from a 1/2" hose down to a 3/8" hose. If you decide to add the boom down the road, please feel free to reach out to our customer service team directly at 800-831-0027. We can provide you with the exact part numbers needed for whichever route you wish to take!19 days agoHelpful?
Q: What are the dimensions of the tank. Will the retractable hose reel fit on the side of this tank
3 months ago1 Answer
- A: Approximately 36" W, x 34.5" D x 16.750" H. There are inserts in the corner of the back of sprayer that allows the UTV hose reel kit to mount to the tank.3 months agoHelpful?
Q: I just missed the sale at 799.00. Will this be back on sale?
11 months ago1 Answer
- A: That would have to be a question for Tractor Supply, you can contact their customer service support or your local Tractor Supply and ask them.11 months agoHelpful?
Q: whats the warranty?
a year ago1 Answer
- A: The sprayer has a one-year warranty and the pump has a two-year warranty from date of purchase with a copy of the sales receipt.a year agoHelpful?
Q: I need to buy a new boom for my sprayer. Where do I find one?
a year ago1 Answer
- A: You can either have Tractor Supply special order a replacement boom, part number is found in your owner's manual or you can call our customer service team at 800-831-0027 and they'll be happy to assist you. You may also just go to our website, fimcoindustries.com and order through our web.a year agoHelpful?
Q: Hi what speed should you drive?
a year ago1 Answer
- A: Garrett, there is a calibration chart in the manuals that show at what speed and pressure you need to go by to achieve the application rates per your chemical specifications.a year agoHelpful?
Q: What size hose is used connecting to the hand held sprayer? And how long is it?
a year ago2 Answers
- A: The hose connecting to the spray gun is 25 foot long.a year agoHelpful?
Q: Do you have a cigarette lighter adapter to provide power rather than hooking direclty to the battery?
3 years ago1 Answer
- A: Hi, The instructions recommend direct connect to the battery. We cant make the claim that anything else would work. It would also depend heavily on the make and model of your car.3 years agoHelpful?
Q: Does this sprayer have a way to agitate chemicals?
3 years ago1 Answer
- A: Hi MarkAn, Thank you for your interest in this product, it does not have a way to agitate chemicals.3 years agoHelpful?
1 - 10 of 26 Questions
Similar Items
Items You May Like
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Customers Also Bought
Reviews
Summary of Reviews
The sprayer is generally well-made, with a sturdy construction and adjustable boom height that allows for efficient coverage of large areas. Customers appreciate the convenience features like the inte...
Customer Images and Videos
- purchase
- spraying
- width
- in-store
- setup
- quality
- satisfaction
- installation
1 to 4 of 72 Reviews .
1 – 4 of 72 Reviews
Most Recent
Review 1
1 out of 5 stars.
Poor quality control and support from Fimco
28 days ago
Fimco sent this sprayer missing two small parts that render the sprayer inoperable until I receive them. One missing part was a small bolt that holds the middle spray nozzle on the spray bar. The other was a hose clamp needed to clamp the feed line to that same nozzle. I contacted Fimco customer support, and the representative was nice enough to help me determine the correct part numbers and said that the parts would be shipped to me. I asked if the parts could be expedited and was told, “It’s Friday afternoon, nobody is here, and the parts will ship out Monday.” I asked if the parts could be expedited. No response. So I’m sitting here with a $1000 sprayer that is not operable because of the negligence and inattentiveness to detail of whomever assembled this sprayer at Fimco’s factory. (There is no way the bolt got loose and fell out—it was quite obviously never installed in the first place.) Based on this I cannot recommend any Fimco products.
Response from Fimco Industries:
28 days ago
Fimco Industries
Thank you for reaching out, and we sincerely apologize for the frustration this has caused. It is disappointing to hear your new sprayer arrived missing the components necessary to get to work. We pride ourselves on our assembly standards, and it is clear we missed the mark here.
We want to confirm that your replacement bolt and hose clamp were processed and are currently in transit to you. While we do not have an expedited shipping tier available, we made sure to get these out as quickly as our standard fulfillment allows once the weekend concluded.
We appreciate your patience while these final pieces arrive, and we are committed to ensuring your sprayer performs to the $1,000 standard you expect.
We want to confirm that your replacement bolt and hose clamp were processed and are currently in transit to you. While we do not have an expedited shipping tier available, we made sure to get these out as quickly as our standard fulfillment allows once the weekend concluded.
We appreciate your patience while these final pieces arrive, and we are committed to ensuring your sprayer performs to the $1,000 standard you expect.
Anonymous
Review 1
5 out of 5 stars.
Sprayer
a month ago
Works great, less fillups while spraying
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for the feedback! We are glad the 65-gallon capacity is helping you stay productive and save time on refills. It’s great to hear the sprayer is performing well for your UTV setup.
Review 1
1 out of 5 stars.
Poor quality
2 months ago
65 gallon sprayer. Not a well built unit or at least the one I have. Straight out of the box the nozzles leaked horribly! Warranty covered new ones. 2nd year of use had problems with pump not building pressure correctly and plastic on motor housing cracked. Plus I was starting to have trouble with the cheap manifold ball valves. 3rd year ball valves in manifold stripped out at the handle and now.you can’t open or close.the valves. Also had more problems out of the nozzles not working properly but I think it’s time for a new pump at this point as I have noticed the pump is not building pressure correctly again, the pressure guage started leaking, and the connection from the manifold to the pump started leaking Yes the unit has been stored properly, cleaned and winterized each year. If you are good for using it one season then this is the unit for you. Only good things I can say about this unit is does have a nice tank and hand wand. I’ll be using a different pump going forward and building a better manifold from the hardware store. I will also be looking at putting better nozzles on it.
Response from Fimco Industries:
2 months ago
Fimco Industries
Not sure if you ever called our customer service team at 800-831-0027, but they would be happy to assist you with the issues you're having. They could also help troubleshoot the possibilities of the pump not building pressure, could be a chemical that may be causing the issue, hard to say from the above. As for the handles, sometimes opening and closing the valves hard, can gradually wallow out the back of the handles to the point where they don't open and close. The team can help you with those as well. We have several customers that have had this sprayer for years and no issues and love it. So please contact the team to see what they can do for you.
Brady Texas
Review 1
3 out of 5 stars.
Broke Part
2 months ago
Received product. Had part on it that had gotten broke when I picked up at store. Tried get store to order, but couldnt, had to order myself from company Fimco. Store said would reimburse for part cost. Still waiting to receive part.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
2 months ago
Fimco Industries
Ronnie, thank you for your purchase of the 65-gallon UTV sprayer. Sorry that it had a broken part on it. Please contact our customer service team at 800-831-0027, as you should not have had to pay for it, our team would have placed an order and sent that at no charge. So, please contact them and explain the situation so that we can get you credited back.
