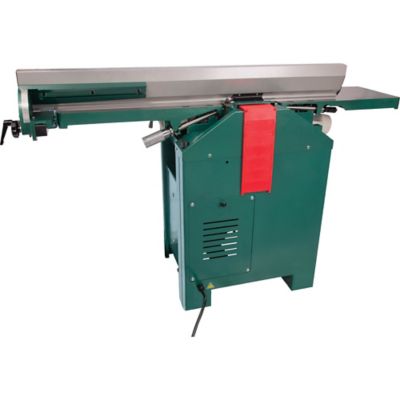

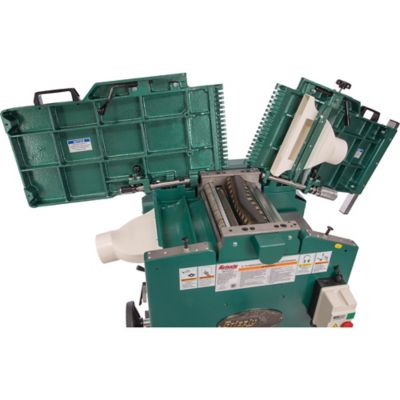

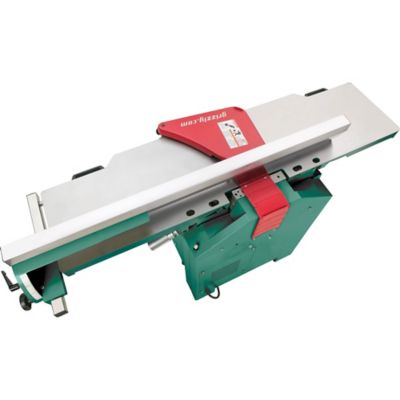

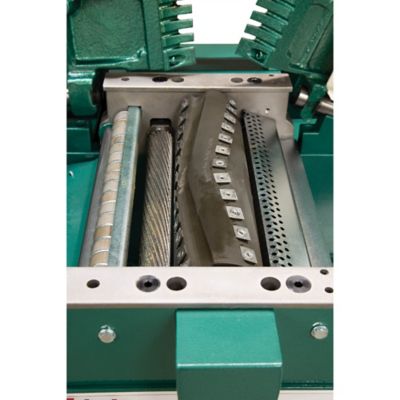

Most woodworking projects require lumber that is jointed and planed as a starting point. Save time, space, and money with a machine that does it all. The G0634X 12" 5 HP Planer / Jointer combines a powerful 5 HP motor with a V-helical cutterhead for unmatched finish and long-lasting durability compared to a machine with straight knives. No need to sharpen the blades every time they get dull or nicked. The 48 indexable carbide inserts can be rotated up to 3 times for a new sharp edge. The quick-release fence can be positioned at any angle between 45° and 90° as shown by the tilt scale. The fence has been end-mounted to save space so nothing is protruding from the back of the machine. Conversion from the jointer to the planer is easy. Just remove the quick-release fence and flip up the jointer tables. To use the jointer again, simply release and lower the tables, put the fence back on and you are ready to face or edge joint. The planer features cast-iron infeed and outfeed tables, two feed rollers, anti-kickback fingers and a depth of cut scale on the front.

• Motor: 5 HP, 220V, single-phase, 25A
• Maximum jointer cut width: 12"
• Maximum jointer cut depth: 1/8"
• Maximum planer cut width: 11-3/4"
• Maximum planer stock thickness: 8"
• Cutterhead diameter: 3-1/8"
• Cutterhead speed: 5034 RPM
• Jointer table size: 14" x 59-1/2"
• Fence: 6" x 51-1/2", end-mounted

The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
