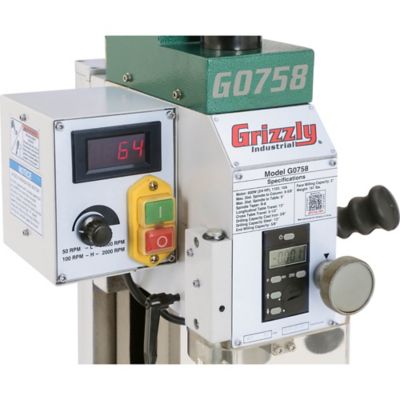

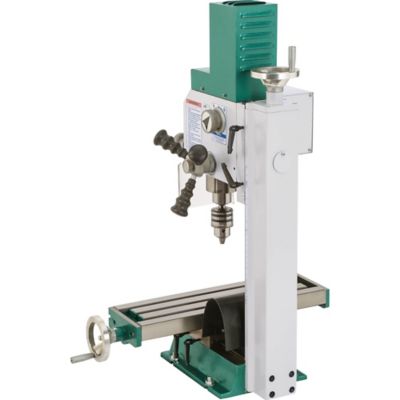

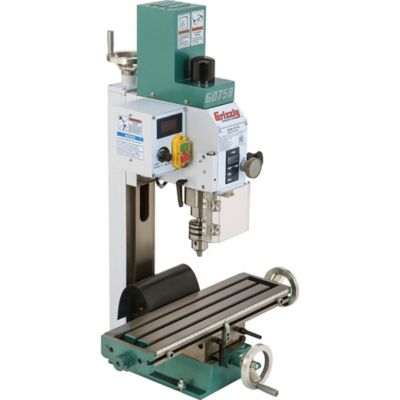

Drawing from the heritage of producing previous mill/drills, the G0758 6" x 20" Mill/Drill comes packed with impressive features. The 3/4 HP motor powers the variable-speed spindle control from 50 to 2000 RPM and is displayed on a DRO. Tracking spindle depth is as easy as reading a separate DRO with inch/mm display and zeroing function. Additionally it has super-rigid precision-ground dovetail head column and table ways, coarse and fine spindle downfeed, and precision handwheel control for X, Y, and Z-axis. If that is not enough, this fiesty champ has one of the largest tables, table travel, and motor sizes in its class, allowing it to take on a huge range of workpiece sizes. With its R-8 spindle taper, it can also make use of a wide variety of tooling. The head is equipped with a special shifter knob that allows you to drop power-transfer gearing down for maximum torque in the lowest RPM range.

• Motor: 3/4 HP, 110V, single-phase, 10A
• Spindle taper: R-8; Spindle travel: 2"
• Spindle speeds: Variable, 50-1000 RPM low, 100-2000 RPM high
• Quill diameter: 2.36"
• Spindle nose to table: 8-3/4"
• Table size: 5-3/4" x 19-3/4"
• T-slots: 3 @ 1-1/2" centers, 3/8" wide
• Longitudinal travel: 13-1/8"
• Cross travel: 5-1/2"; Head Travel: 8-1/4"
