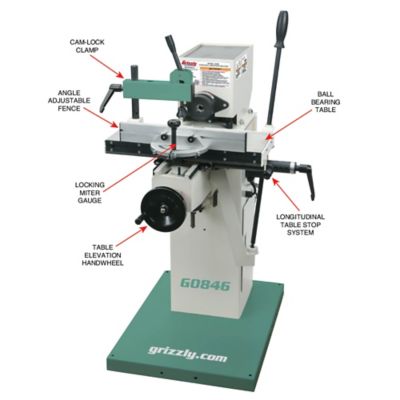

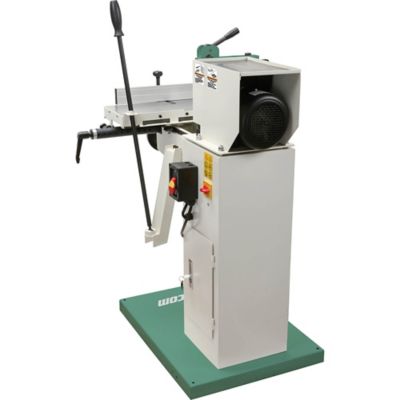

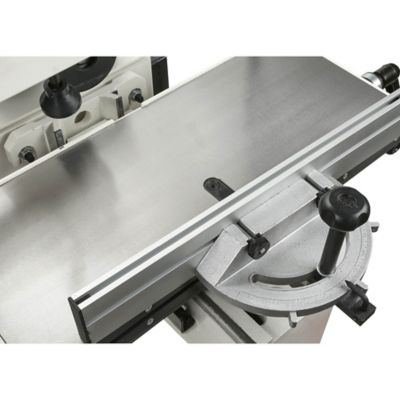

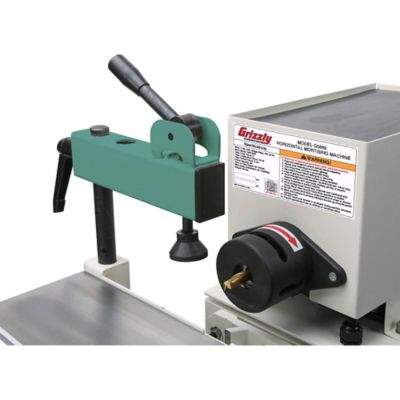

The Grizzly G0846 Horizontal Slot Mortiser incorporates a router mounted on its side with the workpiece clamped to a multi-axis sliding table. Use it to quickly cut mortises for traditional mortise-and-tenon or 'loose tenon' joinery and easily cut angled mortises as no elaborate jigs and fixtures are required. The G0846 is driven by a powerful 2-horsepower, 220-Volt, 10 Amp motor and is equipped with a 20 in. x 8 in. precision-ground cast-iron table. The table features an adjustable cam-action hold-down clamp to secure the workpiece. The table glides along two hardened V-ways using 4 ball bearings for smooth, effortless motion. The table has two adjustable X-axis (side-to-side) stops and 1 Y-axis (depth) stop. The G0846 has an indexing guide with four spacing patterns that, when combined with the stops, are all crucial for repeat operations and production work.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
