Grizzly G1276 6 x 48in. Belt 12 in. Disc Combo Sander
Item # 229410599
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
A sander built to the scale and level of quality professional woodworkers demand. The heavy-duty G1276 Combination Sander features a 6" x 48" sanding belt that operates horizontally, vertically, or at any angle in between and a 12" disc.
The sanding belt speed is a low 2500 FPM, while the disc speed is 1725 RPM.
The 7" wide, 16-1/2" long work table supports workpieces when using the 12" sanding disc. It tilts from 30° to the left and 45° to the right.
The convenient, quick-release lever makes belt changes and tension adjustment a snap.
Belt rollers have shielded ball bearings and the top roller has a fine-tuning knob for precision tracking.
Base accepts 5/8" fasteners for mounting to workbench.
Additional features include a built-in an adjustable miter gauge, 2-1/2"and 3"dust ports, plus T-slots in the cast-iron work tables.
Like all Grizzly benchtop machines, the G1276 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G1276 manual was written by the U.S.-based Grizzly Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory

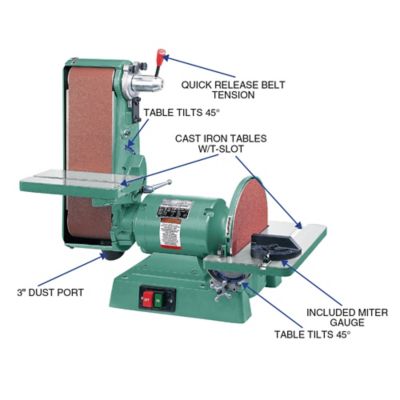

SPECIFICATIONS: FEATURES:- Quick belt release
- Top roller has fine tracking knob
- Disc table positive stops at 90°
- Belt table positive stops at 45° and 90°
- Two cast-iron tables
- Miter gauge
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 1 HP, 110V/220V (prewired for 110V), single-phase, 12A/6A
- Sanding belt size: 6" x 48"
- Sanding belt speed: 2500 FPM
- Belt platen size: 6" x 14-1/2"
- Belt table size: 7" x 12-1/2"
- Disc diameter: 12"
- Disc backing type: PSA
- Disc speed: 1725 RPM
- Disc table size: 7" x 16-1/2"
- Table tilt 30° L, 45° R
- Number of dust ports: 2
- Dust port sizes: 2-1/2", 3"
- Footprint: 17" x 14"
- Overall dimensions: 32-1/2" W x 16-1/2" D x 29-1/2" H
- Approximate shipping weight: 150 lbs.
