Hobart 25V/225A Champion Elite 225 Welder
Hobart 25V/225A Champion Elite 225 Welder
Item # 232508999
$4899.99
or
or
Buy a Welder and Get 15% off Welder accessories.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Hobart 25V/225A Champion Elite 225 Welder
Item # 232508999
Buy a Welder and Get 15% off Welder accessories.
$4899.99
or
or
$103/mo.† for 48 months at 0% APR or earn $244 in Rewards+ on this purchase.
Valid 5/11/2026 - 7/5/2026
Valid 5/11/2026 - 7/5/2026
Shopping at
Grassland (franklin) TN
Delivery to
This is a Big & Bulky item.
Pickup Nearby at OLD HICKORY TN(24.1) miles Free
Ship to store at Franklin TN
Get everything you need
Neighbor’s Club Members earn points with purchases.

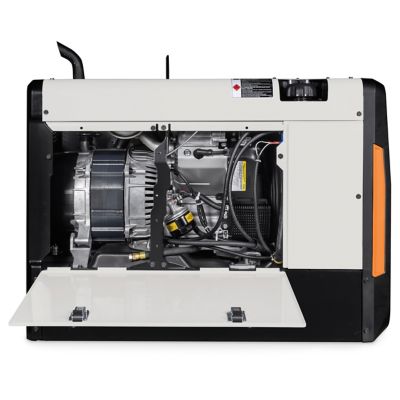

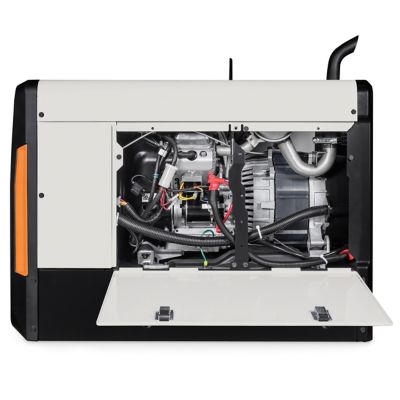

Champion Elite 225 Engine-Driven Welder - The heavy-duty, All-in-One Engine Driven Welder combines 10,000-watt auxiliary power with a 225-amp DC welder. Designed for Stick welding with quick and easy arc starts. It is simple to use and easy to maintain. Warranty coverage included.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on welders? Check out our guide on welding in the product documents section.
- Heavy-duty construction - Offers you stamina and long dependable service. Enclosed design, large battery, rugged electrical connections and wiring, and circuit breaker protection.
- Smooth and consistent arc starts - Allows you smooth arc starts with minimal "sticking".
- Quick-set amperage control - Allows you to easily dial in your precise weld setting. Refer to Electrode Key on the front panel to set the correct amperage for your weld.
- Lightweight and compact design - Lightweight and portable design allows easy movement around the jobsite and fuel efficiency for transporting. Compact design allows more space while operating equipment, as well as in the back of a vehicle.

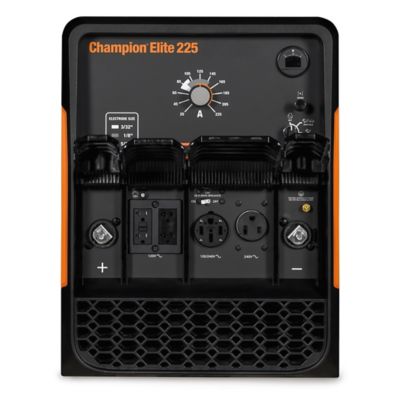

- Simple User Interface - New interface provides a user-friendly experience with single amperage knob. Also includes easy to read fuel display that shows your hour/meter and service reminders.

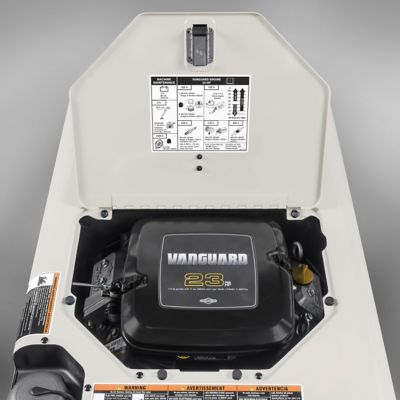

- Rugged Vanguard Engine - Saves you time and money with the dependable engine which conserves fuel and provides long operation before refueling. 11-gallon fuel tank and low oil pressure shutdown are standard features.
- Weld and auxiliary power efficiency - The upgraded Champion Elite 225 offers enhanced solutions including full auxiliary power at any amperage, no arc interference from other tools, and no power spikes.
- Multitude of power inputs - Two 120-volt plugs, the NEMA 6-30 and NEMA 6-50 provide anything from common job site tools to plasma cutters to four prong receptacles for powering various job site applications.
- Hobart 5/3/1 Industrial Warranty
| Brand | Hobart |
|---|---|
| Country of Origin | Made in USA |
| AC/DC Stick | DC stick |
| Compatible Metal | Stainless Steel, Other, Steel |
| Electrode Cable Length | 0 in. |
| Features | Single Phase Auxiliary Continuous Power - 9500 W,Single Phase Auxiliary Peak Power - 10000 W |
| Maximum Electrode Size | 0.15625 in. |
| Maximum Open Circuit Voltage | 80 VDC |
| Maximum Welding Amperage | 225A |
| Maximum Material Thickness | 12 in. |
| Minimum Electrode Size | 0.09375 in. |
| Minimum Generator Power Required | 9,500W |
| Power Cord Length | 12 ft. |
| Product Height | 20.13 in. |
| Product Length | 37.06 in. |
| Product Weight | 373 lb. |
| Product Width | 26.5 in. |
| Welding Applications | Stick Welding (SMAW) |
| Warranty | Hobart 5/3/1 Industrial Warranty |
| Welder Input Voltage | 25V |
| Welding Applications | Stick Welding (SMAW) |
| Work Cable Length | 0 in. |
| Manufacturer Part Number | 500580 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 20 Questions
Newest questions
Q: Puede con facilidad trabajar la 70/18 de 1/8
a month ago1 Answer
- AI-generatedA: Yes, this welder is designed for stick welding and can handle 1/8-inch 7018 electrodes. It supports a maximum electrode size of 0.15625 inches (5/32 in.) and features quick-set amperage control to dial in the precise settings needed for your weld.a month agoHelpful?
Q: can i get this product with a Kohler Motor
2 months ago1 Answer
- AI-generatedA: This welder is equipped with a rugged Vanguard engine rather than a Kohler motor. The 23 hp twin-cylinder engine is designed for fuel efficiency and long operation.2 months agoHelpful?
Q: What size battery does it take
3 months ago1 Answer
- A: Hello, thank you for your question. The Hobart Champion Elite 225 Welder requires a standard BCI Group 58 12-volt lead-acid battery.3 months agoHelpful?
Q: What about welding leads ?
6 months ago1 Answer
- A: The Hobart Champion Elite 225 Welder does not include welding leads with the machine itself; they must be purchased separately. The commonly recommended and available leads are 50 feet long.6 months agoHelpful?
Q: can I get a cover for it?
7 months ago1 Answer
- A: Hello, thank you for your question. Hobart makes a cover for this welder (Part #771023), however, we do not currently have this item available at TSC.7 months agoHelpful?
Q: Does it come with leads or battery?
11 months ago1 Answer
- A: Hello, thank you for your question. It does include a battery but no leads.11 months agoHelpful?
Q: what size of battery does it take.
11 months ago1 Answer
- A: Hi, The Hobart 25V/225A Champion Elite 225 Welder (500580) uses a Group 58 battery. It can be replaced with a Traveller T-58 battery from Tractor Supply.11 months agoHelpful?
Q: what is the brand of the engine
a year ago1 Answer
- A: Engine Brand - Vanguard with 3-year mfg. warranty Horsepower - 23 hp at 3,600 rpm Weld Speed - 3,600 rpm Engine Type - Twin-cylinder, four-cycle, overhead valve, industrial, air-cooled, gasoline Fuel Capacity - 11 gal. (41.6 L) Idle Speed - 2,400 rpm Oil Capacity/Change - 1.5 qt. (1.4 L) every 100 hoursa year agoHelpful?
Q: What is the run time if used as a generator at max with 11 gallons of fuel?
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to Hobart for assistance with this specific inquiry. ***Hobart*** https://www.hobartwelders.com/support/contact-us-form (800) 626-9420a year agoHelpful?
Q: How much does it weigh?
a year ago1 Answer
- A: Hello, thank you for your question. The Hobart 25V/225A Champion Elite 225 Welder weighs 373 lbs.a year agoHelpful?
1 - 10 of 20 Questions
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 20 Questions
Newest questions
Q: Puede con facilidad trabajar la 70/18 de 1/8
a month ago1 Answer
- AI-generatedA: Yes, this welder is designed for stick welding and can handle 1/8-inch 7018 electrodes. It supports a maximum electrode size of 0.15625 inches (5/32 in.) and features quick-set amperage control to dial in the precise settings needed for your weld.a month agoHelpful?
Q: can i get this product with a Kohler Motor
2 months ago1 Answer
- AI-generatedA: This welder is equipped with a rugged Vanguard engine rather than a Kohler motor. The 23 hp twin-cylinder engine is designed for fuel efficiency and long operation.2 months agoHelpful?
Q: What size battery does it take
3 months ago1 Answer
- A: Hello, thank you for your question. The Hobart Champion Elite 225 Welder requires a standard BCI Group 58 12-volt lead-acid battery.3 months agoHelpful?
Q: What about welding leads ?
6 months ago1 Answer
- A: The Hobart Champion Elite 225 Welder does not include welding leads with the machine itself; they must be purchased separately. The commonly recommended and available leads are 50 feet long.6 months agoHelpful?
Q: can I get a cover for it?
7 months ago1 Answer
- A: Hello, thank you for your question. Hobart makes a cover for this welder (Part #771023), however, we do not currently have this item available at TSC.7 months agoHelpful?
Q: Does it come with leads or battery?
11 months ago1 Answer
- A: Hello, thank you for your question. It does include a battery but no leads.11 months agoHelpful?
Q: what size of battery does it take.
11 months ago1 Answer
- A: Hi, The Hobart 25V/225A Champion Elite 225 Welder (500580) uses a Group 58 battery. It can be replaced with a Traveller T-58 battery from Tractor Supply.11 months agoHelpful?
Q: what is the brand of the engine
a year ago1 Answer
- A: Engine Brand - Vanguard with 3-year mfg. warranty Horsepower - 23 hp at 3,600 rpm Weld Speed - 3,600 rpm Engine Type - Twin-cylinder, four-cycle, overhead valve, industrial, air-cooled, gasoline Fuel Capacity - 11 gal. (41.6 L) Idle Speed - 2,400 rpm Oil Capacity/Change - 1.5 qt. (1.4 L) every 100 hoursa year agoHelpful?
Q: What is the run time if used as a generator at max with 11 gallons of fuel?
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to Hobart for assistance with this specific inquiry. ***Hobart*** https://www.hobartwelders.com/support/contact-us-form (800) 626-9420a year agoHelpful?
Q: How much does it weigh?
a year ago1 Answer
- A: Hello, thank you for your question. The Hobart 25V/225A Champion Elite 225 Welder weighs 373 lbs.a year agoHelpful?
1 - 10 of 20 Questions
Similar Items
-
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
Customers Also Bought
-
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
Reviews
- purchase
- price
- satisfaction
- product availability
- returns
- shortcoming
- small
- turning
1 to 4 of 37 Reviews .
1 – 4 of 37 Reviews
Most Recent
Review 1
5 out of 5 stars.
Hobart champion elite
3 months ago
So far no issues good machine
SweepstakesYes
Anonymous
Review 1
5 out of 5 stars.
Hobart Welder-Generator
6 months ago
The Hobart is a wonderful piece of equipment. Actually makes welding fun. Has the power needed to get the job done.
SweepstakesYes
Yes, I recommend this product.
BROOKVILLE,Pa.
Review 1
5 out of 5 stars.
Great Welder
10 months ago
Great machine, runs smooth and quiet. Much better than the Lincoln
SweepstakesYes
Texas
Reviews 2
3 out of 5 stars.
Light weight too many electronic components.
10 months ago
Not a bad machine. Have it in shop for cpu failing and now it won’t idle out of low idle into high idle.
So no more welding at the moment which sucks. Initially I wanted to older model but it was sold out and now I regret getting the newer model.
No, I do not recommend this product.
