National Hardware Zinc-Plated Box Rail Hangers
National Hardware Zinc-Plated Box Rail Hangers
Item # 355183099
$74.99
Neighbor’s Club Members earn points with purchases.
$74.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.

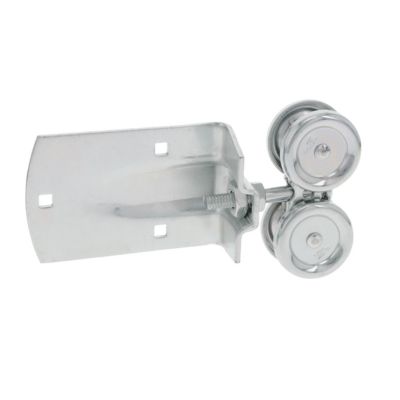

This National Hardware Box Rail Hanger is designed for use on wood-frame sliding doors from 1-1/2 in. to 2 in. thick. The box rail hanger is packed with two end caps and bolts for attaching door strap. With over a century of service, National Hardware is committed to maintaining the highest level of product quality, innovation and manufacturing technology. Discover quality door hardware parts for all your projects today.
- Designed for use on box rail with wood-frame sliding doors from 1-1/2 in. to 2 in. thick
- For use with #59, #5100, #5103, #5104, #5105, #5110, #5114 or #5116 box rail

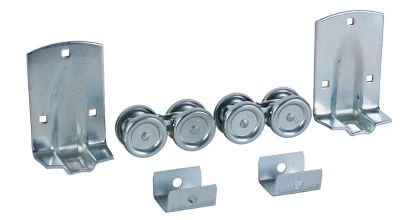

- Packed with 2 end caps and bolts for attaching door strap
- Adjustable both laterally and vertically
- Comes with self-lubricating Delrin bearings
- Made of durable one-piece, precision-formed steel
- Safe Working Load - 225 lb. per hanger
- Limited Lifetime Warranty
| Brand | National Hardware |
|---|---|
| Country of Origin | Imported |
| Maximum Weight Capacity | 225 lb. |
| Package Quantity | 2 |
| Primary Finish | Zinc-Plated |
| Primary Material | Steel |
| Product Height | 2.85 in. |
| Product Length | 11.25 in. |
| Product Weight | 4.87 lb. |
| Product Width | 5.25 in. |
| Manufacturer Part Number | N112-102 |
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Trying to order some barn door rails online an it wont let us add it to the cart?
2 years ago1 Answer
- A: Hi, Thank you for your interest in this product. This item is currently out of stock. Unfortunately we do not have inventory restock information, however, make sure your signed up to receive our emails (sign up link is located at the bottom of our website page) and follow us on social media.2 years agoHelpful?
Q: Is this compatible with 5430 12 ft. Face-Mount Round Rail, Galvanized, 193961?
Anonymous5 years ago1 Answer
- A: The box rail hanger is not compatible. You will want to use one of the below items for the round rail: N193-714 – TSC SKU 3542027 N193-730 – TSC SKU 35420354 years agoHelpful?
Q: Two box rail hangers or 1?, item description 1 box rail hanger, answered questions, they are sold in pairs? TSC says 1 hanger 225lbs, national hardware says pair 450lbs?
5 years ago1 Answer
- A: 1 box rail hanger per package5 years agoHelpful?
Q: Do both the 5005 and 5040 fit in unistrut channels? Are curved channels available to allow a pair of doors to turn a corner?
7 years ago1 Answer
- A: Curved track are no longer available, Wheel diameter is 2.14".7 years agoHelpful?
Q: Is this for a pair (enough to hang one door) or each (I would need to buy "2" in order to hang one door)?
7 years ago1 Answer
- A: This item is sold in pairs with all the hardware to hang one door/panel.7 years agoHelpful?
Q: I know hangers are height adjustable but, What is the dimension range comparison between the 5005 and 5040 box rail hangers "Bottom of track to top of door" ? It looks to be about 1-1/2" to 2" on the 5005 and 2" to 2-1/2" on the 5040.
8 years ago1 Answer
- A: For further assistance please call 1800-346-9445 option 3.8 years agoHelpful?
Q: Is the quantity of roller hanger sets correct? Wouldn't there be a roller set for each side of a door?
8 years ago1 Answer
- A: Each door will require one set or one pair of rollers.8 years agoHelpful?
Q: What is the diameter of the wheels? (N112-102) Do they fit box rail? (N105-270) using as a guide for a barn lift so box rail will be mounted vertical
8 years ago1 Answer
- A: Wheel Width (inches) 1.61, Wheel Diameter (inches) 2.14, Bolt Hole Diameter (inches) 0.508. Please call 1800-346-9445 option 3 for further assistance.8 years agoHelpful?
Q: Is the weight capacity per pair or per each
9 years ago1 Answer
- A: Per pair is 450 pounds, each hanger 225 pounds. This item is sold In pairs to sustain a door weighing up to 450 pounds9 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Trying to order some barn door rails online an it wont let us add it to the cart?
2 years ago1 Answer
- A: Hi, Thank you for your interest in this product. This item is currently out of stock. Unfortunately we do not have inventory restock information, however, make sure your signed up to receive our emails (sign up link is located at the bottom of our website page) and follow us on social media.2 years agoHelpful?
Q: Is this compatible with 5430 12 ft. Face-Mount Round Rail, Galvanized, 193961?
Anonymous5 years ago1 Answer
- A: The box rail hanger is not compatible. You will want to use one of the below items for the round rail: N193-714 – TSC SKU 3542027 N193-730 – TSC SKU 35420354 years agoHelpful?
Q: Two box rail hangers or 1?, item description 1 box rail hanger, answered questions, they are sold in pairs? TSC says 1 hanger 225lbs, national hardware says pair 450lbs?
5 years ago1 Answer
- A: 1 box rail hanger per package5 years agoHelpful?
Q: Do both the 5005 and 5040 fit in unistrut channels? Are curved channels available to allow a pair of doors to turn a corner?
7 years ago1 Answer
- A: Curved track are no longer available, Wheel diameter is 2.14".7 years agoHelpful?
Q: Is this for a pair (enough to hang one door) or each (I would need to buy "2" in order to hang one door)?
7 years ago1 Answer
- A: This item is sold in pairs with all the hardware to hang one door/panel.7 years agoHelpful?
Q: I know hangers are height adjustable but, What is the dimension range comparison between the 5005 and 5040 box rail hangers "Bottom of track to top of door" ? It looks to be about 1-1/2" to 2" on the 5005 and 2" to 2-1/2" on the 5040.
8 years ago1 Answer
- A: For further assistance please call 1800-346-9445 option 3.8 years agoHelpful?
Q: Is the quantity of roller hanger sets correct? Wouldn't there be a roller set for each side of a door?
8 years ago1 Answer
- A: Each door will require one set or one pair of rollers.8 years agoHelpful?
Q: What is the diameter of the wheels? (N112-102) Do they fit box rail? (N105-270) using as a guide for a barn lift so box rail will be mounted vertical
8 years ago1 Answer
- A: Wheel Width (inches) 1.61, Wheel Diameter (inches) 2.14, Bolt Hole Diameter (inches) 0.508. Please call 1800-346-9445 option 3 for further assistance.8 years agoHelpful?
Q: Is the weight capacity per pair or per each
9 years ago1 Answer
- A: Per pair is 450 pounds, each hanger 225 pounds. This item is sold In pairs to sustain a door weighing up to 450 pounds9 years agoHelpful?
