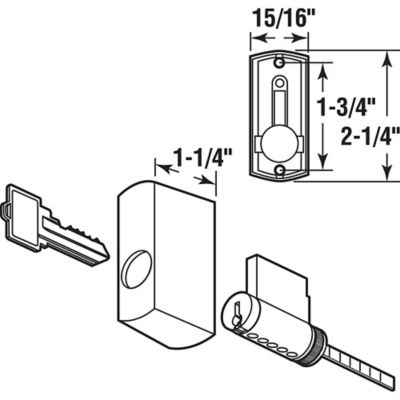

This sliding patio door keyed locking unit by Prime-Line Products is constructed of diecast and comes in a corrosion-resistant, white-painted finish. This locking device is designed to convert non-locking Prime-Line patio door handle sets (model number: C 1174, C 1176 and C 1178) to keyed locking handles. This lock features a 5-pin tumbler with 2 keys. The lock body is solid brass construction with a hardened break-away tailpiece. Use to replace damaged key cylinders in most surface mount handles.
Specification | Description |
---|---|
Brand | Prime-Line |
Country of Origin | Made in USA |
Bore Hole Diameter | 0 in. |
Cross Bore Diameter | 0 in. |
Cylinder Style | Single |
Features | N/A |
Finish | White |
Indoor/Outdoor | Indoor and Outdoor |
Maximum Door Thickness | 1.75 in. |
Minimum Door Thickness | 1 in. |
Number of Keys Included | 2 |
Number Of Pins | 5 |
Package Quantity | 1 |
Primary Color | White |
Primary Material | Zinc alloy |
Product Height | 2.25 in. |
Product Length | 0.9375 in. |
Product Weight | 0.39 in. |
Product Width | 0.9375 in. |
Projection | 1.25 in. |
Strike Height | 0 in. |
Strike Style | Other |
Strike Width | 0 in. |
Throw Length | 0 in. |
Warranty | 1 year limited |
Manufacturer Part Number | E 2145 |
