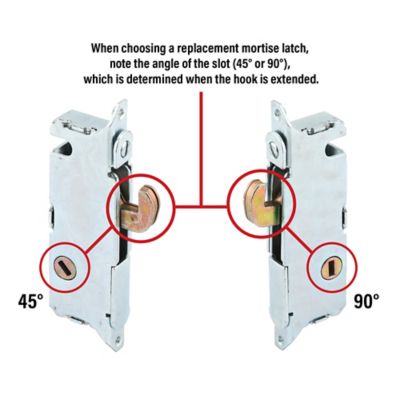

When your sliding door mortise lock is broken or old, don't replace the door entirely, just get a new mortise lock! This E 2199 Stainless Steel Mortise Lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with 45-degree angled keyway positions when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 in. from center to center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer's How-To Video that is linked to this item page.

• REPLACE OLD OR BROKEN DOOR LOCKS When your sliding door mortise lock is broken or old, dont replace the door entirely, just get a new mortise lock!
• EASY INSTALLATION Installation is quick and easy working sliding door locks are well within reach!
• FOR SLIDING DOORS This Mortise Lock can be used on sliding patio doors constructed of wood, aluminum and vinyl. Also fits doors using W&F manufactured handles.
• 45 DEGREE KEYWAY - This E 2199 stainless steel mortise lock has a 45-degree angled keyway position when in the locked position.
• PRODUCT INFO - The mounting hole centers of this lock measures 3-11/16 from center to center, and the rear housing corners are square. Mortise lock dimensions are: 1.125"(D)x0.5"(W)x3.688"(H)
