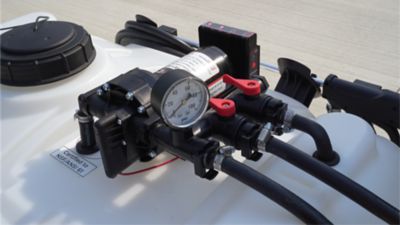

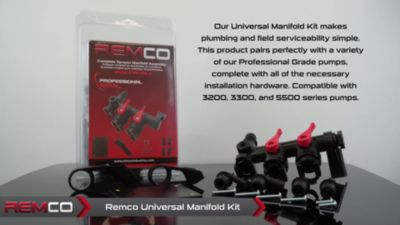

The REMCO Universal Sprayer Manifold Kit is a complete kit that makes plumbing and maintenance of your sprayer simple. This sprayer manifold is engineered for durability and its chemically resistant body is perfect for use with common agricultural chemicals like herbicides, fertilizers, and insecticides. This universal sprayer manifold kit pairs perfectly with pumps sized 2.0 GPM to 5.3 GPM including REMCO 3300, 3200 and 5500 series along with many other pump brands. With universal quick attach ports this sprayer manifold is simple to adapt to any pump and creates a positive seal for all spray accessories eliminating leak points. The sprayer manifold kit comes complete with all of the necessary hardware and fittings for easy installation on to any sprayer or tank.Package Contents: 1 - Sprayer Manifold, 2 - Mounting Legs, 2 - 3/8 in. Hose Barb Fittings (straight and elbow), 2 - 1/2 in. Hose Barb Fittings (straight and Elbow), 1 - Tank adapter plate, 4 - Pump mounting screws, 2 - plate mounting screws
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Adaptable to pump sized 2.0 GPM to 5.3 GPM, including REMCO 3300, 3200, and 5500 Series along with many other brands
- Equipped with 1 quick attach port for spray gun and 2 quick attach ports with ball valves for other spray accessories like a boom and agitation line
- Included auxiliary ports are 1/4 in. FNPT gauge port and 1/2 in. FNPT accessory port for a pressure regulator
- Can be used with all common spray chemicals such as herbicides, fertilizers, and insecticides
- Maximum operating pressure of 150 PSI
- Chemically-resistant body and ball valves engineered for Professional Grade durability
- Ideal manifold kit for heavy-duty spraying, high pressure cleaning, agricultural spraying, starter fertilizer and general industrial
| Brand | REMCO |
|---|---|
| Country of Origin | Imported |
| Compatibility | Compatible with Remco 3300, 3200 and 5500 Series pumps along with other brands in similar sizes. Also compatible with common Agricultural Chemicals, herbicides, fertilizers, and insecticides |
| Discharge Port Diameter | 0.75 in. Female Quick Attach |
| Inlet Diameter | 0.75 in. Male Quick Attach |
| Maximum Flow Rate | 7 GPM |
| Maximum Operating Pressure | 150 PSI |
| Maximum Operating Temperature | 180 deg. F |
| Minimum Operating Pressure | 150 PSI |
| Minimum Operating Temperature | 180 deg. F |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Polypropylene |
| Product Height | 2.5 in. |
| Product Length | 11 in. |
| Product Weight | 1 lb. |
| Product Width | 7 in. |
| Pump/Repair Product Type | Manifolds |
| Manufacturer Part Number | RM-35C-K |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: does this manifold come with hardware to plumb it remotely or is it required to mount directly to the pump?
2 months ago1 Answer
- A: Good question, this manifold is meant to mount directly to the pump only, it is not meant to be a remote mounted manifold. Reach out to us with any other questions 763-253-4740 or sales@remcoindustries.com2 months agoHelpful?
Q: Will this work on a AG SPRAYER with SHURFLOW PUMP
2 months ago1 Answer
- A: This will not work with a ShurFlo pump due to the port configuration. Their maybe a retrofit kit you can purchase from AG Spray equipment to adapt this manifold to the ShurFlo pump. Please reach out with further questions 763-253-4740 or sales@remcoindustries.com2 months agoHelpful?
Q: Nice manifold. Need to add another valve for the Gun. That way there is no needless pressure on the gun when using the boom! When using the gun you could keep pressure off boom! Make a valve you can add to the Gun port!
9 months ago1 Answer
- A: Thanks for your feedback. We will take this suggestion under advisement. In our initial design we did discuss this, but it seemed redundant since the trigger of the gun acts as its own valve and all components can handle system pressure, in fact they are designed for it. This was also pointed out that if someone were to leave that valve closed or partly closed it could cause flow restriction leading to potential pressure switch or pump issues, so we eliminated it matching the other leaders in the industry. Thanks again for your feedback.9 months agoHelpful?
Q: Will this fit a Remco 55AQUA JET-ARV pump?
10 months ago1 Answer
- A: Thanks for your question, No this manifold is not meant to be used with the 55AQUAJET-ARV pump, and it will not fit properly. This manifold's intended use is on sprayer/chemical pumps which are installed on agricultural sprayers. The Aquajet pump is a fresh water only pump intended for RV's and campers. Please reach out directly with any questions 763-253-4740 or sales@remcoindustries.com10 months agoHelpful?
Q: Will this fit on my Chapin 25 gal sprayer?
10 months ago1 Answer
- A: Thanks for the question, yes this manifold should fit your sprayer as long as the pump has quick attach style ports. Include in the kit is a mounting plate and multiple mounting legs which can be use to properly configure to your specific sprayer. Please reach out to us with any question regarding installation 763-253-4740 or sales@remcoindustries.com10 months agoHelpful?
Q: will this manifold fit my 30 gal. county line sprayer?
11 months ago1 Answer
- A: Thanks for your question, as long as your pump is a 3/4" Quick attach pump this manifold will fit. Included in the kit is an adapter plate that allows you to adjust the mounting direction and clearance so there is no tank interference. For any further question please contact us directly sales@remcoindustries.com or 763-253-474011 months agoHelpful?
Q: Will this work with a Fimco brand sprayer 45 gallon?
a year ago1 Answer
- A: Thanks for your question, and yes this will fit on most Fimco sprayers. If you have fit issues please reach out to us sales@remcoindustries.com or 763-253-4740a year agoHelpful?
Q: Does this work with the Fatboy 7gpm pump? I purchased this manifold and it fits just fine. Have not completed my build and used it yet, but it fits in the Quick Attach port. Will this not work with the Fatboy pump?
a year ago1 Answer
- A: Good question, this manifold is designed for use with pumps ranging from 1.0GPM - 5.3GPM, so to answer your question this manifold was not designed to handle the high flow rate of a Fatboy pump.a year agoHelpful?
Q: How would i comnect this to a pump with 1/2in female threads on the outlet?
2 years ago1 Answer
- A: Thanks for your question, but this manifold is only meant for quick attach ported pumps. There is not adapter for 1/2" FNPT threaded pumps. Please reach out to us directly if you have further questions, 763-253-4740 or sales@remcoindustries.com2 years agoHelpful?
Q: can you adjust the rate of flow with the ball valves?
3 years ago1 Answer
- A: Yes you can absolutely, feel free to reach out to us with question 763-253-4740 or sales@remcoindustries.com thanks for your feedback3 years agoHelpful?
1 - 10 of 11 Questions
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: does this manifold come with hardware to plumb it remotely or is it required to mount directly to the pump?
2 months ago1 Answer
- A: Good question, this manifold is meant to mount directly to the pump only, it is not meant to be a remote mounted manifold. Reach out to us with any other questions 763-253-4740 or sales@remcoindustries.com2 months agoHelpful?
Q: Will this work on a AG SPRAYER with SHURFLOW PUMP
2 months ago1 Answer
- A: This will not work with a ShurFlo pump due to the port configuration. Their maybe a retrofit kit you can purchase from AG Spray equipment to adapt this manifold to the ShurFlo pump. Please reach out with further questions 763-253-4740 or sales@remcoindustries.com2 months agoHelpful?
Q: Nice manifold. Need to add another valve for the Gun. That way there is no needless pressure on the gun when using the boom! When using the gun you could keep pressure off boom! Make a valve you can add to the Gun port!
9 months ago1 Answer
- A: Thanks for your feedback. We will take this suggestion under advisement. In our initial design we did discuss this, but it seemed redundant since the trigger of the gun acts as its own valve and all components can handle system pressure, in fact they are designed for it. This was also pointed out that if someone were to leave that valve closed or partly closed it could cause flow restriction leading to potential pressure switch or pump issues, so we eliminated it matching the other leaders in the industry. Thanks again for your feedback.9 months agoHelpful?
Q: Will this fit a Remco 55AQUA JET-ARV pump?
10 months ago1 Answer
- A: Thanks for your question, No this manifold is not meant to be used with the 55AQUAJET-ARV pump, and it will not fit properly. This manifold's intended use is on sprayer/chemical pumps which are installed on agricultural sprayers. The Aquajet pump is a fresh water only pump intended for RV's and campers. Please reach out directly with any questions 763-253-4740 or sales@remcoindustries.com10 months agoHelpful?
Q: Will this fit on my Chapin 25 gal sprayer?
10 months ago1 Answer
- A: Thanks for the question, yes this manifold should fit your sprayer as long as the pump has quick attach style ports. Include in the kit is a mounting plate and multiple mounting legs which can be use to properly configure to your specific sprayer. Please reach out to us with any question regarding installation 763-253-4740 or sales@remcoindustries.com10 months agoHelpful?
Q: will this manifold fit my 30 gal. county line sprayer?
11 months ago1 Answer
- A: Thanks for your question, as long as your pump is a 3/4" Quick attach pump this manifold will fit. Included in the kit is an adapter plate that allows you to adjust the mounting direction and clearance so there is no tank interference. For any further question please contact us directly sales@remcoindustries.com or 763-253-474011 months agoHelpful?
Q: Will this work with a Fimco brand sprayer 45 gallon?
a year ago1 Answer
- A: Thanks for your question, and yes this will fit on most Fimco sprayers. If you have fit issues please reach out to us sales@remcoindustries.com or 763-253-4740a year agoHelpful?
Q: Does this work with the Fatboy 7gpm pump? I purchased this manifold and it fits just fine. Have not completed my build and used it yet, but it fits in the Quick Attach port. Will this not work with the Fatboy pump?
a year ago1 Answer
- A: Good question, this manifold is designed for use with pumps ranging from 1.0GPM - 5.3GPM, so to answer your question this manifold was not designed to handle the high flow rate of a Fatboy pump.a year agoHelpful?
Q: How would i comnect this to a pump with 1/2in female threads on the outlet?
2 years ago1 Answer
- A: Thanks for your question, but this manifold is only meant for quick attach ported pumps. There is not adapter for 1/2" FNPT threaded pumps. Please reach out to us directly if you have further questions, 763-253-4740 or sales@remcoindustries.com2 years agoHelpful?
Q: can you adjust the rate of flow with the ball valves?
3 years ago1 Answer
- A: Yes you can absolutely, feel free to reach out to us with question 763-253-4740 or sales@remcoindustries.com thanks for your feedback3 years agoHelpful?
1 - 10 of 11 Questions
Similar Items
-
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Reviews
- compatibility
- design
- large
- protection
- setup
1 to 4 of 11 Reviews .
1 – 4 of 11 Reviews
Most Recent
Review 1
4 out of 5 stars.
parts
10 months ago
you need to carry more parts in Hereford
SweepstakesYes
Yes, I recommend this product.
Response from Zach R.:
10 months ago
Zach R.
Thanks for the review, however all parts are only available on www.tractorsupply.com, just search REMCO and our entire product line will coming up. Please reach out to us directly if you can find something on there 763-253-4740
Review 1
4 out of 5 stars.
It's a nice manifold
11 months ago

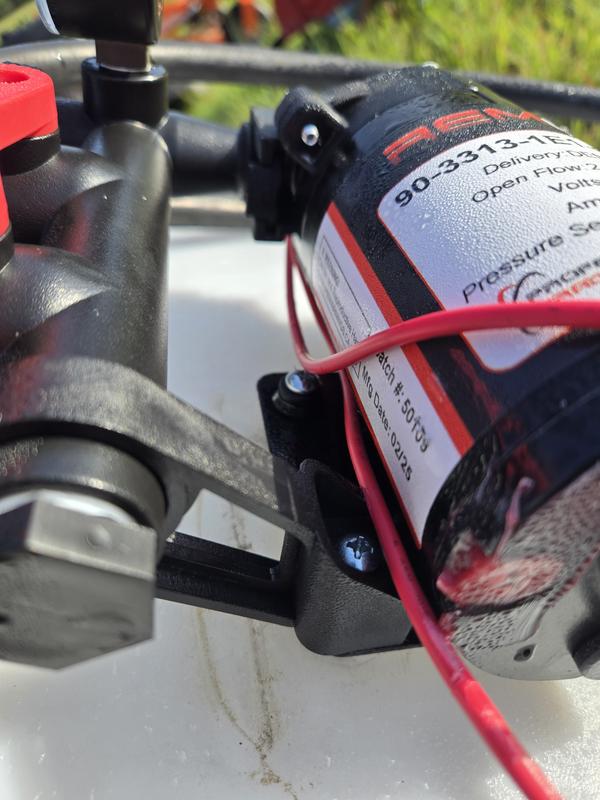

Easy connection to my Remco 3300 series pump using the supplied short support brace. I like that it's a one piece design and eliminated one of the leak points from the original manifold. I also like that it has larger valve handles. The quick connections for the hoses were no problem on top of my 25 gallon Workhorse sprayer tank. I had to tilt the manifold up slightly to pop the hoses in, but they fit just fine, and the locks were able able to slide into the locked position without interfering with the tank. I went with four stars based on fitment alone. I haven't used it yet, and I haven't seen if it has superior UV protection to the older manifold that I would have to replace every year due to UV degradation.
Now if only Remco could improve the weather/water resistance of the 3300 series pump housing, I'd be set. That's another component I'm having to replace every year due to corrosion and seizing from water ingress past the O rings on the pump housing bolts.
Yes, I recommend this product.
Response from Zach R.:
11 months ago
Zach R.
Thanks for your reivew, we appreciate the feedback. Regarding the manifold fit, we supply a mounting plate allowing you to raise the pump up incase of any clearance issues. As for the pump it is sealed to IP65, making it the most weather resistance pump on the market. We do recommend avoiding chemical exposure to the outside of the pump to avoid corrosion. Please reach out to us directly with any further questions 763-253-4740 or sales@remcoindustries.com with pictures.
Va
Reviews 2
4 out of 5 stars.
Sprayer manifold
2 years ago
Sprayer manifold , hard to find, good price, works well
Sweepstakes EntryYes
Yes, I recommend this product.
Response from Zach R.:
2 years ago
Zach R.
Fantastic thanks for your feedback!
Anonymous
Kerrville, Texas
Review 1
5 out of 5 stars.
extra features
3 years ago
great replace part
Sweepstakes EntryYes
Yes, I recommend this product.
Response from Zach R.:
3 years ago
Zach R.
Glad to hear! Thanks for your feedback!
