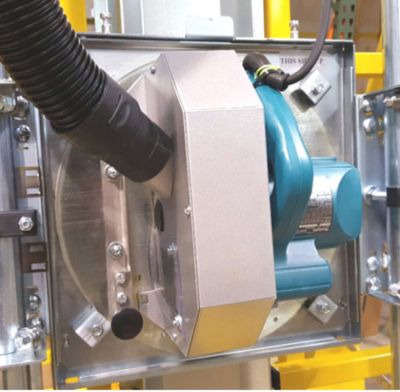

Varsity Series vertical panel saw with precision cuts of 1/64 in. Vertical Cut Height of 52 in. The 5 ft. frame never goes out of square. Utilizes a Makita 5007F saw motor.
Specification | Description |
---|---|
Brand | Saw Trax |
Country of Origin | Made in USA |
Arbor Size | 0.625 in. |
Blade Change Type | Spindle Lock |
Blade Diameter | 7.25 in. |
Cord Length | 10 ft. |
Cut Through | Wood |

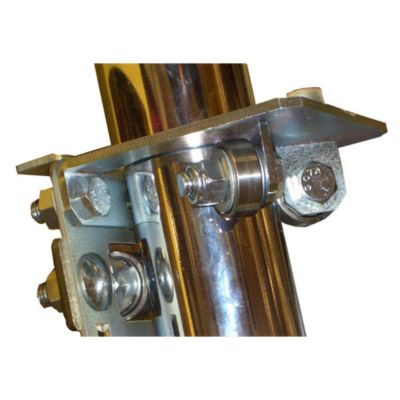

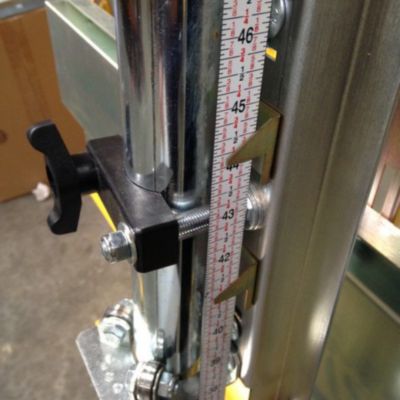

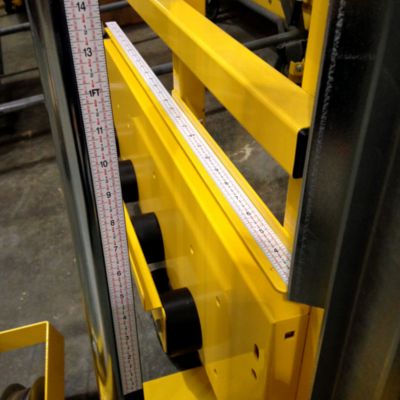

Features | Accu-Glide Sealed Steel Bearings for smooth repetitive carriage movement Spinning Saw Insert Plate Dust hood, hose, brush Folding Stand and Wheels Dual Rip Gauge Stop Block with Bar and Measuring Tapes Patented Accu-Square System |
Housing Material | Steel |
Maximum Bevel Cuts (Left) | 0 N/A |
Maximum Bevel Cuts (Right) | 0 N/A |
Maximum Cut Depth at 45 Degrees | 1.75 in. |
Maximum Cut Depth at 90 Degrees | 1.75 in. |
Maximum RPM | 5,800 RPM |
Portable or Stationary | Portable |
Product Height | 78 in. |
Product Length | 66 in. |
Product Weight | 255 lb. |
Product Width | 40 in. |
Rip Capacity (Left) | 999 Unlimited |
Rip Capacity (Right) | 999 Unlimited |
Table Length | 0 N/A |
Table Width | 0 N/A |
Tool Power Type | Corded |
Variable Speed | Single Speed |
Voltage | 120 v |
Warranty | Saw Trax warrants the parts and workmanship of it's panel saws for ONE year from the date of purchase. This warranty excludes the electric motor. All motors are warranted directly by the motor manufacturer. |
Manufacturer Part Number | C52VP |
