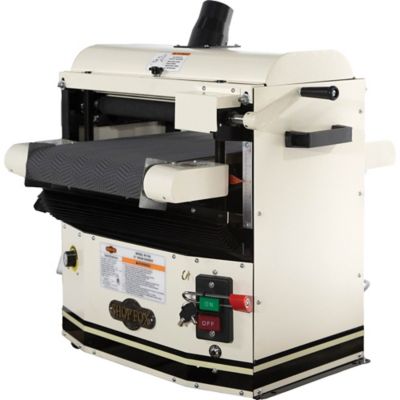

Shop Fox W1740-12 in. 1-1/2 HP Benchtop Drum Sander

Item # 229423499

Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
$1575.00See Price at Checkout
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop Fox W1740-12 in. 1-1/2 HP Benchtop Drum Sander

Item # 229423499

Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
Image showing W1740-12 in. 1-1/2 HP Benchtop Drum Sander
$1575.00See Price at Checkout
or
or
financeCard Logo
$132/mo.†  suggested payments with 12 Months Financing or earn $78 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

A shop-sized drum sander that delivers performance. With 12" width and 3-3/4" thickness capacity, the W1740 12" 1-1/2 HP Benchtop Drum Sander handles most stock sizes produced in a home shop.

This is the ideal machine for removing the telltale surface marks from a planer.

The variable-speed knob allows you to increase the feed rate from 2.47 to 17.3 FPM.

Accepts hook-and-loop sanding rolls for easy installation and grit changes.

For a full range of replacement paper for the W1740, shop here.

The W1740 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.

Made in an ISO 9001 factory

CSA and UL certified

SPECIFICATIONS:



For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

  • Sanding motor: 1-1/2 HP, 115V, single-phase, 13A
  • Conveyor motor: 1/8 HP, 0.3A
  • Maximum sanding width: 12"
  • Maximum sanding thickness: 3-1/2"
  • Minimum stock length: 8"
  • Minimum stock thickness: 1/8"
  • Belt size: 3" x 70" hook-and-loop
  • Drum speed: 2127 FPM
  • Sanding drum size: 4"
  • Sanding belt size: 3" x 70" hook & loop
  • Feed speed: Variable, 2.47-17.3 FPM

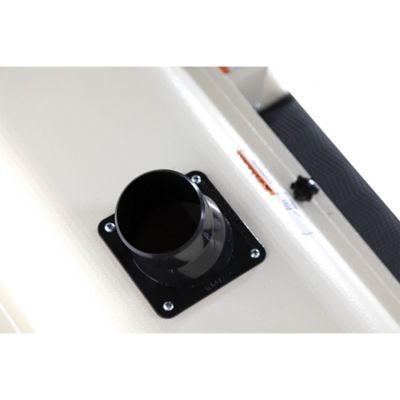

  • Dust port: 2-1/2"
  • Footprint: 22-1/4"W x 13-1/2"D
  • Overall dimensions: 24" W x 27-1/4" D x 25-7/8" H
  • Approximate shipping weight: 160 lbs.
  • Two-year warranty!!
  • Variable-speed conveyor
  • Steel dust scoop maximizes dust collection efficiency
  • Two adjustable pressure rollers
  • Thickness scale
  • Welded steel construction
  • Industrial-duty conveyor belt
  • Side handles for portability
